Descripción
Cámara IP PTZ exterior Alta Definición de 2 MegaPixeles compresión ULTRA 265: más vídeo en menos espacio; cuenta con un lente varifocal motorizado de de 2.8mm ~12mm y alcanza 50m con sus Leds Infrarrojos, ideal para interior/exterior, cuenta con ranura micro SD para almacenamiento interno de hasta 256 GB.

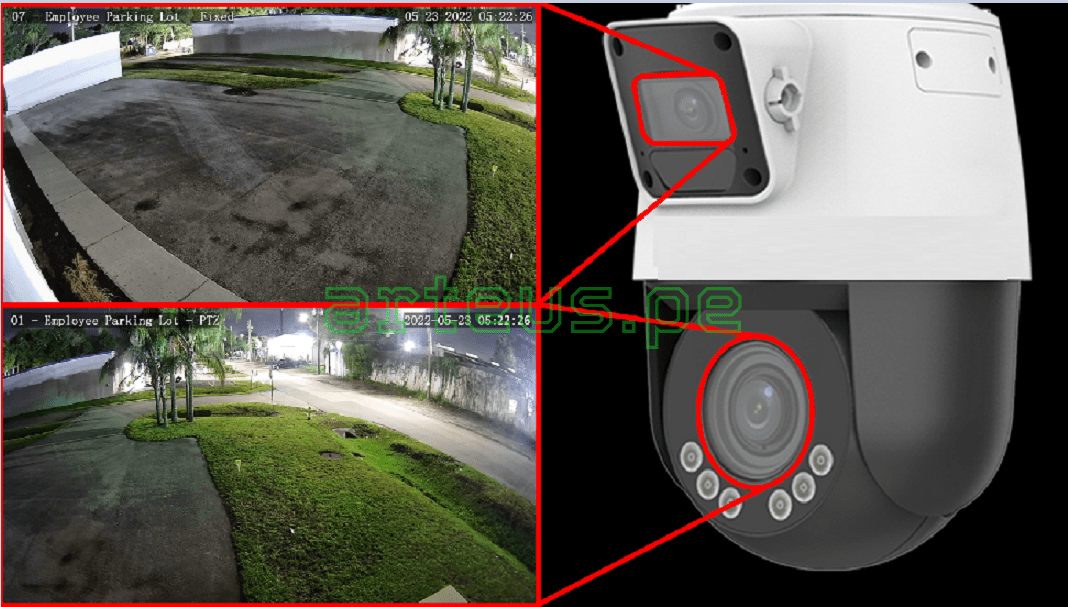

- Integración de cámara fija y cámara PTZ, canales duales con una IP, observe la situación general y considere los detalles al mismo tiempo.
- Imagen de alta calidad con sensor CMOS de 2 MP y 1/2,8".
- Resolución de 1920*1080 a 25 fps en la transmisión principal.
- Ultra 265, H.265, H.264, MJPEG
- El zoom óptico 4X del canal PTZ permite una visualización más cercana de los sujetos.
- La tecnología Lighthunter garantiza una calidad de imagen ultraalta en entornos con poca iluminación.
- Hasta 120 dB WDR óptico (amplio rango dinámico).
- Micrófono incorporado y altavoz de alta potencia, admite audio bidireccional, tiene un mejor rendimiento de sonido.

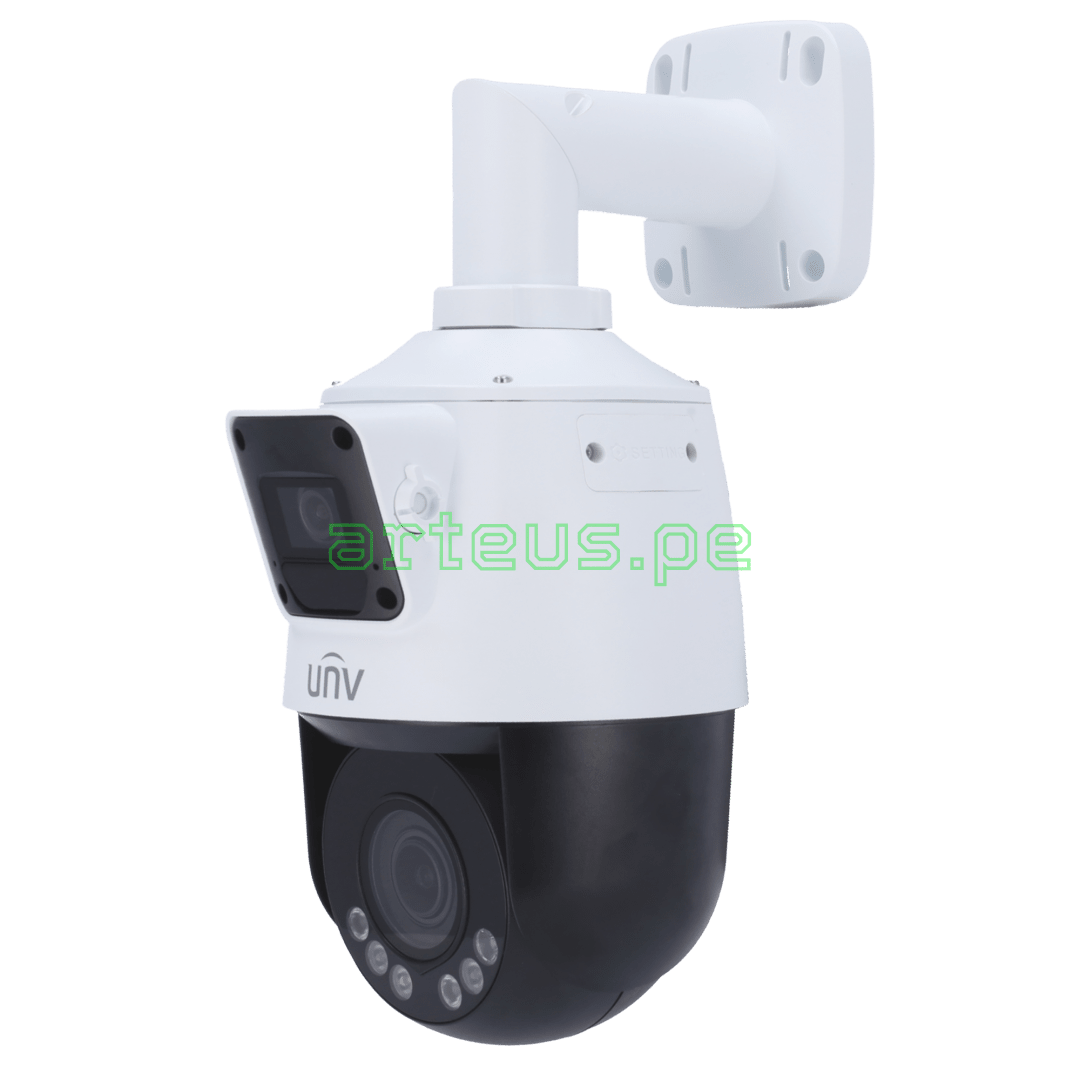

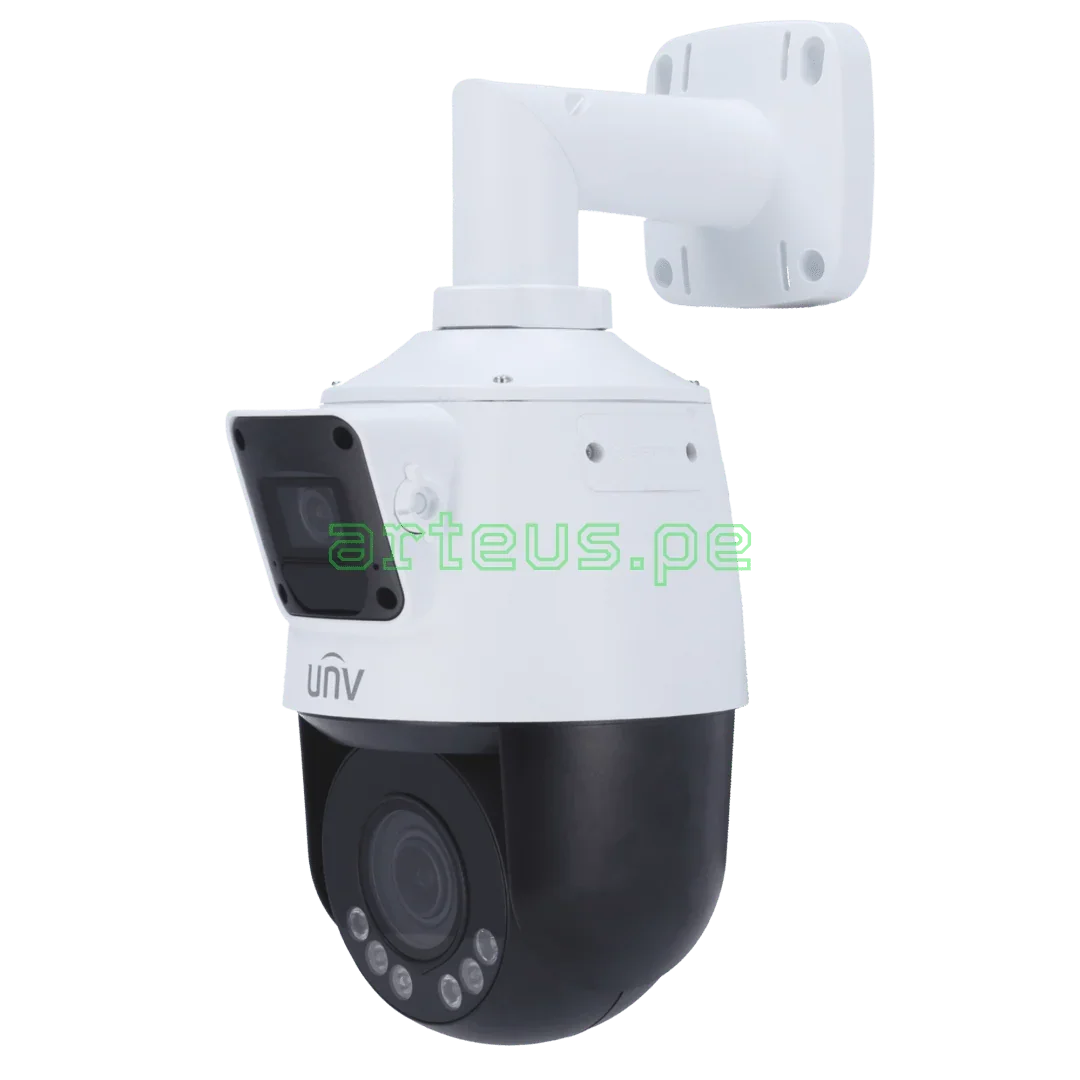

- Soporte de montaje en techo y montaje en pared.
- Fuente de alimentación DC12V o PoE (IEEE 802.3at).
- Protección IP66.
- Slot de memoria micro SD de hasta 256GB.
- Distancia DORI:
-
Parámetro de proximidad para facilitar la elección de la cámara que cubra las necesidades de instalación:
Distancia DORI Lente (mm) Detectar (m) Observar (m) Reconocer (m) Identificar (m) 2.8 (panorama) 43.4 17.4 8.7 4.3 2.8 (detalle) 43.4 17.4 8.7 4.3 12 (detalle) 162.9 65.2 32.6 16.3
Montaje:
- Techo.
- Pared.
| IPC9312LFW-AF28-2X4 | ||||||
| Camera | Panorama | Detail | ||||
| Sensor | 1/2.8", 2MP, CMOS | |||||
| Min. Illumination | Color:0.002 lux (F1.6, AGC ON) 0 lux with IR |
Color:0.002 lux (F1.6, AGC ON) 0 lux with IR/Warm light |
||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||
| WDR | 120dB | DWDR | ||||
| S/N | ＞52dB | |||||
| Lens | ||||||
| Lens type | 2.8mm@F1.6 | 2.8~12mm@F1.6, AF automatic focusing and motorized zoom lens |
||||
| Optical Zoom | N/A | 4X | ||||
| Iris | Fixed aperture | |||||
| Field of View (H) | 102.4° | 106.6° ~ 30.6° | ||||
| Field of View (V) | 54.9° | 56.5° ~ 17.4° | ||||
| Field of View (D) | 133.1° | 138.6° ~ 37.6° | ||||
| DORI | ||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |
| 2.8(Panorama) | 43.4(142.5ft) | 17.4(57.0ft) | 8.7(28.5ft) | 4.3(14.3ft) | ||
| 2.8(Detail) | 43.4(142.5ft) | 17.4(57.0ft) | 8.7(28.5ft) | 4.3(14.3ft) | ||
| 12(Detail) | 162.9(534.6ft) | 65.2(213.8ft) | 32.6(106.9ft) | 16.3(53.5ft) | ||
| Illuminator | ||||||
| IR Range | Up to 10m (32.8 ft) | Up to 50m (164.0 ft) | ||||
| Warm Light Range | N/A | Up to 10m (32.8 ft) | ||||
| Wavelength | 850nm (IR) | |||||
| Light On/Off Control | Auto/Manual | |||||
| Video | ||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||
| Frame Rate | Main Stream: 1080P (1920*1080),Max 25fps Sub Stream: 720P (1280*720), Max 25fps |
|||||
| Video Bit Rate | 128 Kbps~16 Mbps | |||||
| U-code | Support (Main stream) | |||||
| ROI | Up to 8 areas | |||||
| Video stream | Dual streams | |||||
| OSD | Up to 4 OSDs | |||||
| Privacy Mask | 24 areas, up to 4 areas per scene | |||||
| Image | ||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||
| Digital noise reduction | 2D/3D DNR | |||||
| Smart IR | Support | |||||
| Flip | Normal/Flip Vertical/Flip Horizontal/180° | |||||
| HLC | Support | |||||
| BLC | Support | |||||
| Defog | Digital defog | |||||
| Events | ||||||
| Basic Detection | Motion detection, Audio detection | |||||
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication | |||||
| Audio | ||||||
| Audio Compression | G.711U, G.711A | |||||
| Audio Bitrate | 64 Kbps | |||||
| Two-way Audio | Support | |||||
| Suppression | Support | |||||
| Sampling Rate | 8 kHz | |||||
| Storage | ||||||
| Edge Storage | Micro SD, up to 256 GB | |||||
| Network Storage | ANR | |||||
| Network | ||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS | |||||
| Compatible Integration | ONVIF (Profile S, Profile G), API, SDK | |||||
| User/Host | Up to 32 users. 3 user levels: administrator, operator and common user | |||||
| Security | Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | |||||
| Client | EZStation EZLive EZView |
|||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | |||||
| Pan & Tilt | ||||||
| Pan Range | N/A | 0° ~ 345° | ||||
| Pan Speed | N/A | 1°/s ~ 40°/s | ||||
| Preset speed: N/A | Preset speed: 40°/s | |||||
| Tilt Range | 18° ± 5° | -10° ~ 100° | ||||
| Tilt Speed | N/A | 1°/s ~ 50°/s | ||||
| Preset speed: N/A | Preset speed: 50°/s | |||||
| Number of Presets | 256 | |||||
| Preset Patrol | 16 patrol routes, up to 64 presets for each route | |||||
| Patrol Stay Time | 1000s~1800s | |||||
| Preset Image Freeze | N/A | |||||
| Home Position | Support | |||||
| Interface | ||||||
| Audio I/O | N/A | |||||
| Alarm I/O | N/A | |||||
| Serial Port | N/A | |||||
| Built-in Mic | Support (Mic*2) | |||||
| Built-in Speaker | Support | |||||
| Wi-Fi | N/A | |||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | |||||
| Video Output | N/A | |||||
| Certification | ||||||
| EMC | CE-EMC (EN55032:2015; EN55024:2010+A1:2015; EN61000-3-2:2014; EN61000-3-3:2013) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
|||||
| Safety | CE LVD (EN 62368-1:2014+A11:2017; EN 62368-1:2014) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
|||||
| Environment | CE-ROHS (2011/65/EU) | |||||
| Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) | |||||
| General | ||||||
| Power | DC12V, PoE+(IEEE 802.3at) | |||||
| Power consumption: MAX 16W | ||||||
| Power Interface | Ø 5.5mm coaxial power plug | |||||
| Dimensions (Ø x H) | Wall Mount: Φ134 x 192 x 302mm (Φ5.3” x 7.6” x 11.9”) Ceiling Mount: Φ134 x 154 x 363mm (Φ5.3” x 6.1” x 14.3”) |
|||||
| Weight | 1.03kg (2.27lb) | |||||
| Working Environment | -20℃ ~ 60℃(-4°F ~ 140°F)，Humidity: ≤95% RH (non-condensing) | |||||
| Storage Environment | -30℃ ~ 70℃(-22°F ~ 158°F)，Humidity: ≤95% RH (non-condensing) | |||||
| Surge protection | 2KV | |||||
| Reset button | Support | |||||
