Descripción

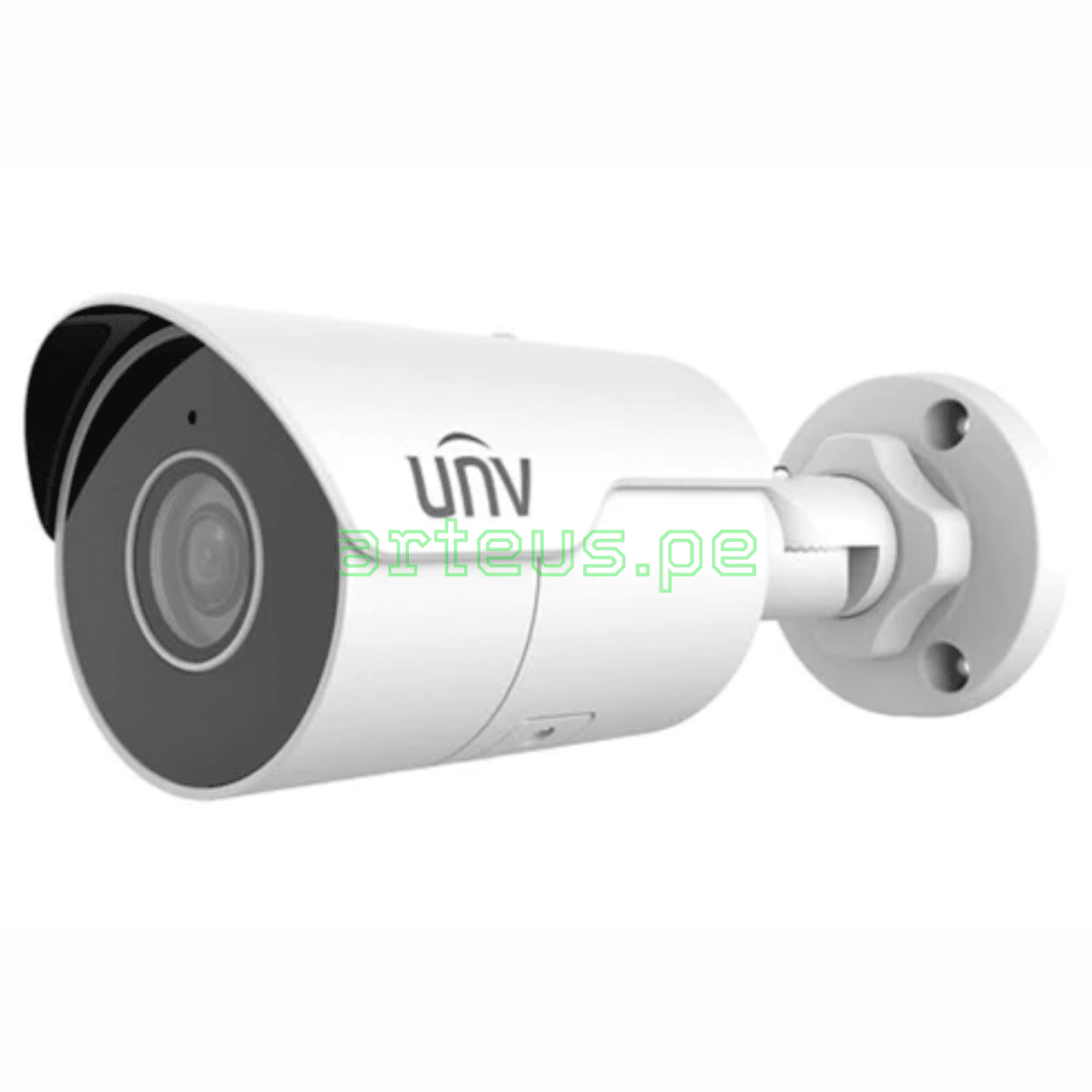

- Cámara de red tipo bala fija IR mini HD de 5 MP
- Imagen de alta calidad con sensor CMOS de 5MP, 1/2.7"
- 5MP (2880*1620)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920 *1080) a 30/25 fps;
- Ultra 265, H.265, H.264, MJPEG
- La tecnología Easystar garantiza una alta calidad de imagen en entornos con poca iluminación
- La tecnología WDR real de 120 dB permite una imagen clara en escenas con mucha luz
- Admite pasillo 9:16 Modo
- Micrófono incorporado
- IR inteligente, distancia IR de hasta 50 m (164 pies)
- Admite tarjeta Micro SD de 256 G
- Protección IP67
- Admite fuente de alimentación PoE
- 3 ejes
| IPC2125LE-ADF28KM-G | IPC2125LE-ADF40KM-G | ||||||||
| Camera | |||||||||
| Sensor | 1/2.7", 5.0 megapixel, progressive scan, CMOS | ||||||||
| Minimum Illumination | Support Easystar: Colour: 0.003 lux ( F1.6, AGC ON) 0Lux with IR on |
||||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | ||||||
| S/N | >56dB | ||||||||
| WDR | 120dB | ||||||||
| Lens | |||||||||
| Lens Type | 2.8mm @F1.6 | 4.0mm @F1.6 | |||||||
| Iris | Fixed | ||||||||
| Field of View (H) | 112.9° | 91.2° | |||||||
| Field of View (V) | 59.1° | 47.9° | |||||||
| Field of View (D) | 121.2° | 95.9° | |||||||
| DORI | |||||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||||
| 2.8 | 63.0 | 25.2 | 12.6 | 6.3 | |||||
| 4.0 | 90.0 | 36.0 | 18.0 | 9.0 | |||||
| Illuminator | |||||||||
| IR Range | Up to 50m (164ft) IR range | ||||||||
| Wavelength | 850nm | ||||||||
| IR On/Off Control | Auto/Manual | ||||||||
| Video | |||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||||
| H.264 Code Profile | Baseline profile, Main profile, High profile | ||||||||
| Frame Rate | Main Stream: 5MP (2880*1620), Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; |
||||||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||||||
| U-code | Support | ||||||||
| 9:16 Corridor Mode | Support | ||||||||
| OSD | Up to 4 OSDs | ||||||||
| Privacy Mask | Up to 4 areas | ||||||||
| ROI | Up to 8 areas | ||||||||
| Video stream | Dual streams | ||||||||
| Image | |||||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||||
| Digital Noise Reduction | 2D/3D DNR | ||||||||
| Smart IR | Supported | ||||||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||||||
| HLC | Supported | ||||||||
| BLC | Supported | ||||||||
| Defog | Digital Defog | ||||||||
| Events | |||||||||
| Basic Detection | Cross line, intrusion(based on human body detection),motion detection, Ultra motion detection, tampering alarm, audio detection | ||||||||
| General Function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication | ||||||||
| Audio | |||||||||
| Audio Compression | G.711U, G.711A | ||||||||
| Audio Bitrate | 64 Kbps | ||||||||
| Two-way Audio | N/A | ||||||||
| Suppression | Support | ||||||||
| Sampling Rate | 8KHZ | ||||||||
| Storage | |||||||||
| Edge Storage | Micro SD, up to 256GB | ||||||||
| Network Storage | ANR, NAS(NFS) | ||||||||
| Network | |||||||||
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP | ||||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API , SDK | ||||||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | ||||||||
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||||||
| Client | EZStation EZView EZLive |
||||||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||||||||
| Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | |||||||||
| Interface | |||||||||
| Audio I/O | N/A | ||||||||
| Alarm I/O | N/A | ||||||||
| RS485 | N/A | ||||||||
| Built-in Mic | Support | ||||||||
| Built-in Speaker | N/A | ||||||||
| WIFI | N/A | ||||||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||||||
| Video Output | N/A | ||||||||
| Certification | |||||||||
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
||||||||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
||||||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | ||||||||
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) | ||||||||
| General | |||||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||||||
| Power consumption: Max 6.0W | |||||||||
| Power Interface | Ø 5.5mm coaxial power plug | ||||||||
| Dimensions(L × W × H) | 190×73×71mm (7.5”×2.9”×2.8”) | ||||||||
| Weight | 0.45kg (0.99lb) | ||||||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||||
| Surge Protection | 4KV | ||||||||
| Reset Button | N/A | ||||||||
