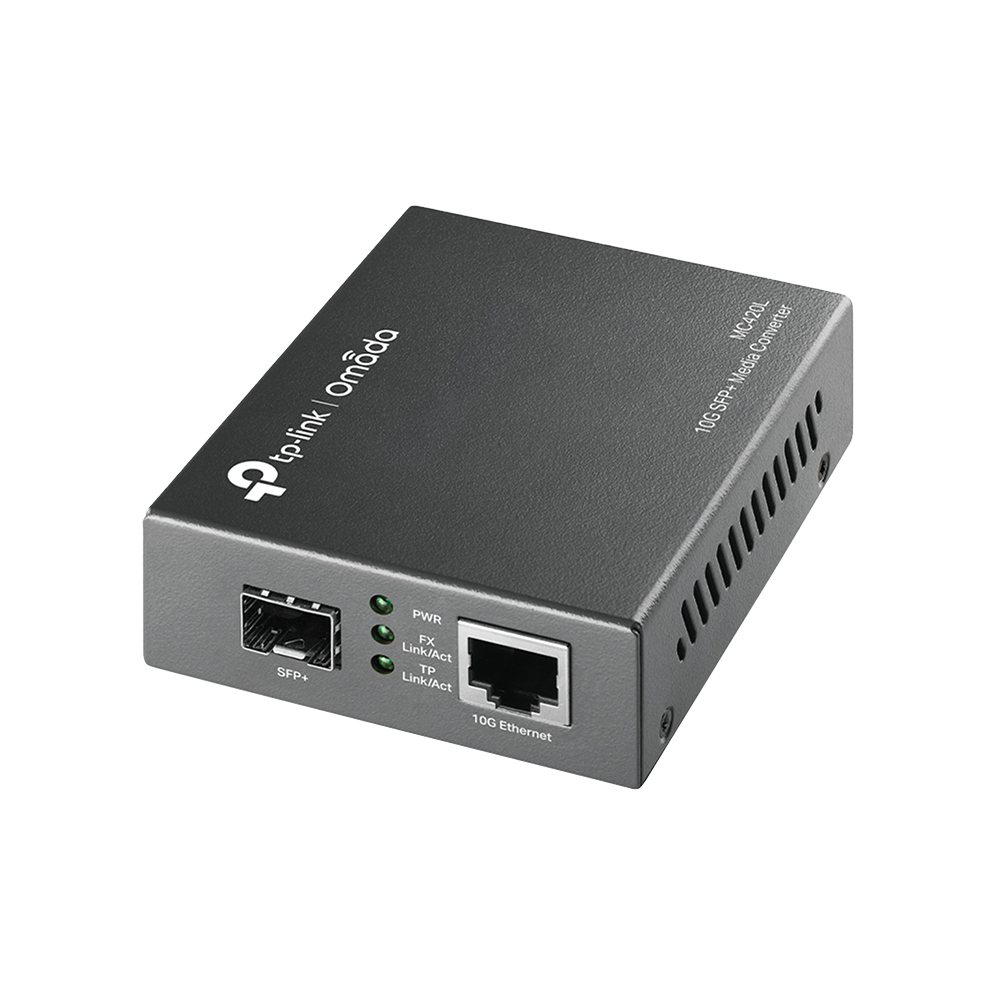

Media Converter Omada 10G Multi-Gigabit SFP
- 1× 1G/2.5G/5G/10Gbps Puertos RJ45 con Auto-Negociación y soporte Auto-MDI/MDIX
- Auto-negociación modos Half-Duplex / Full-Duplex
- Compatible con IEEE 802.3an, IEEE 802.3ae, y IEEE 802.3aq
- Puerto FX soporta conexión en caliente
- Distancia de transmisión máxima según SFP
| CONVERTIDOR DE MEDIOS Y MÓDULO |
| Estándares y Protocolos |
IEEE 802.3ab, IEEE 802.3an, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3x
|
| Funciones Básicas |
• Auto-negotiation of Half-Duplex / Full-Duplex transfer mode • Maximum transmission distance depends on the inserting SFP module |
| Puertos |
• 1× SFP+ port • 1× 1G/2.5G/5G/10Gbps RJ45 port
|
| Longitud de Onda |
Depends on the used SFP module |
| Network Media 10GBASE-R |
Multi-mode/Single-mode SFP+ module |
| Network Media 10GBASE-T |
1000BASE-T/2.5GBASE-T/5GBASE-T: UTP cat.5e or above (max. 100m); 10GBASE-T: UTP cat.6(max. 55m), STP Cat. 6 or above(max. 100m) |
| Dimensiones (W*D*H) |
3.7*2.9*1.1 in. (94.5*73.0*27.0 mm) |
| Fuente de Alimentación |
External Power Adapter
|
| Consumo máximo de energía |
4.12W |
| LED |
PWR, Link/Act
|
| Seguridad y Emisión |
UL, RoHS |
| Contenidos del paquete |
• MC420L • Power Adapter • Installation Guide |
| Ambiente |
• Operating Temperature: 0℃~50℃ (32℉~122℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%RH~90%RH Non-condensing • Storage Humidity: 5%RH~90%RH Non-condensing |
