Descripción

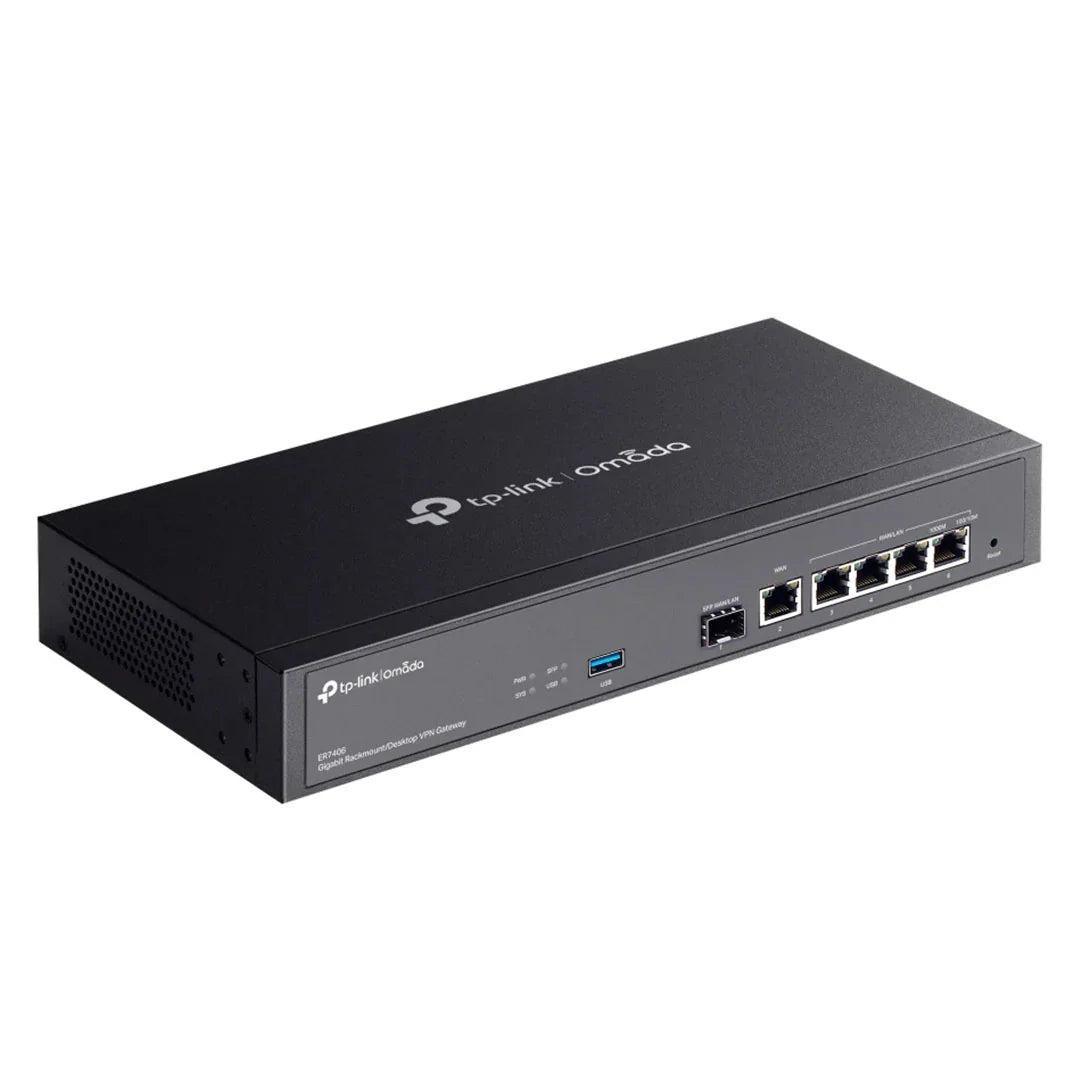

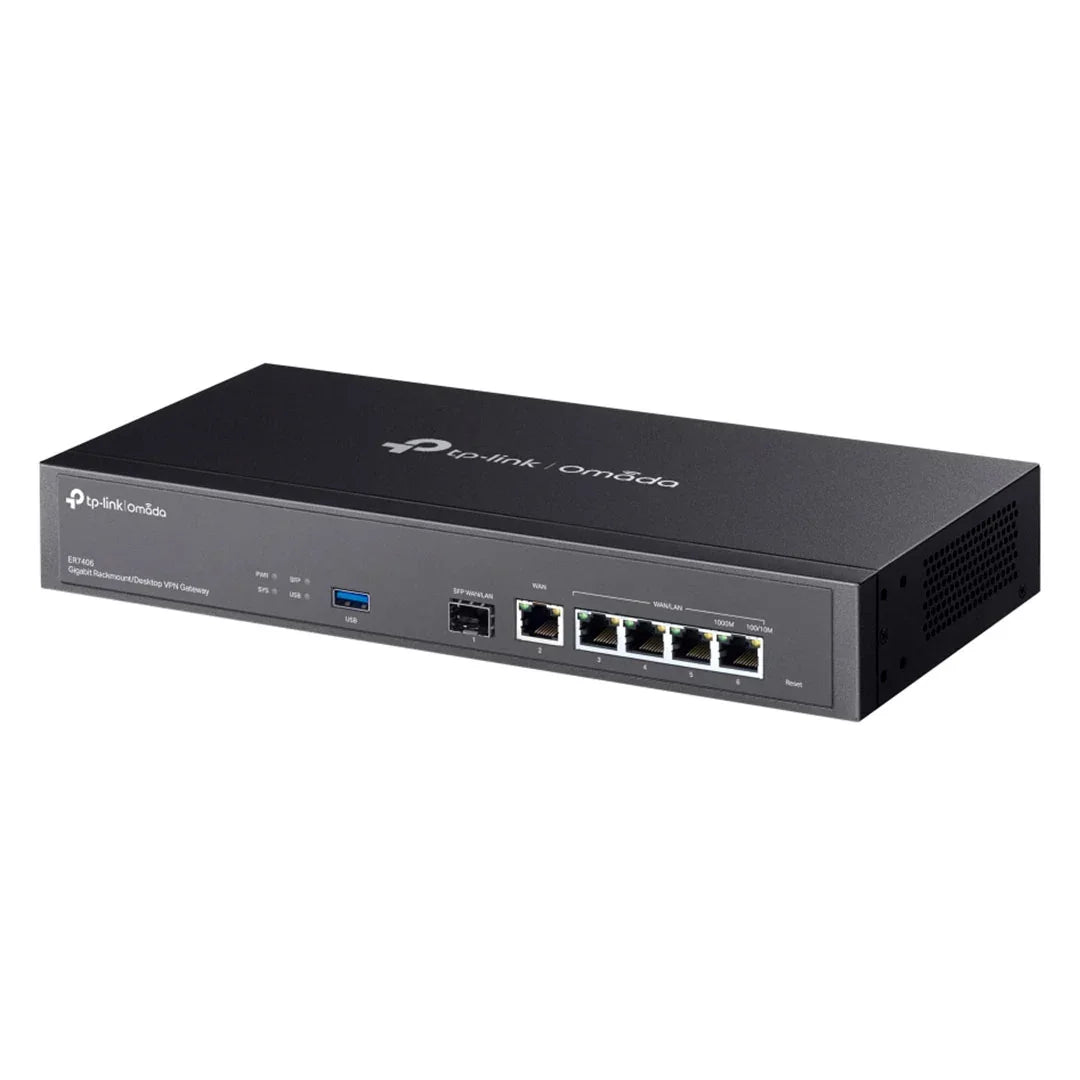

Router VPN Omada Multi-Gigabit
- 1× puerto WAN/LAN Gigabit SFP
- 5 puertos Gigabit RJ45 (1 WAN, 4 WAN/LAN)
- 1 puerto USB 3.0 (admite almacenamiento USB y copia de seguridad LTE con dongle LTE)
- El balanceo de carga en los 5 puertos WAN aumenta la tasa de utilización de la banda ancha multilínea
- VPN de alta seguridad SSL/ IPSec / GRE§ / WireGuard / PPTP / L2TP y OpenVPN
- Gestión centralizada en la nube a través de la web o de la aplicación Omada*.
- Protección DoS/DDoS, filtrado IP/MAC/URL, DPI e IPS/IDS para una mayor seguridad.
- Montaje en rack/sobremesa
| SEGURIDAD | |
|---|---|
| Control de Acceso | Source/Destination IP Based Access Control |
| Filtrado | • WEB Group Filtering§ • URL Filtering • Web Security§ |
| Inspección ARP | • Sending GARP Packets • ARP Scanning§ • IP-MAC Binding |
| Defensa contra Ataques | • TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN |
| CARACTERÍSTICAS DE HARDWARE | |
|---|---|
| Estándares y Protocolos | • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP |
| Interfaz | • 1 Gigabit SFP WAN/LAN Port • 1 Gigabit WAN Port • 4 Gigabit LAN/WAN Ports • 1 USB 3.0 Port (supports USB LTE dongle and USB storage) |
| Medios de Red | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) |
| Cantidad de Ventiladores | Fanless |
| Botones | Reset Button |
| Fuente de Alimentación | 100-240VAC, 50/60Hz |
| Flash | 128 MB NAND |
| DRAM | 512 MB DDR4 |
| LED | PWR, SYS, SFP, USB, WAN(1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act) |
| Dimensiones | 11.6 × 5.5 × 1.7 in (294 × 140 × 44 mm) |
| Protección | 4 kV surge protection |
| Carcasa | Steel |
| Montaje | • Desktop • Rackmountable |
| Consumo de Potencia Máximo | • 7.5 W (with USB 3.0 connected) • 4.5 W (without USB 3.0 connected) |
| RENDIMIENTO | |
|---|---|
| IPS Throughput | TCP: 229 Mbps; UDP: 188 Mbps |
| DPI Throughput | TCP: 933 Mbps; UDP: 927 Mbps |
| GRE | • Unencrypted: 611.9 Mbps • Encrypted: 325.0 Mbps |
| WireGuard VPN | 341.3 Mbps |
| Sesiones Concurrentes | 150,000 |
| Nuevas sesiones/Segundos | 5,300 |
| NAT (IP Estática) | 945.3 Mbps / 940.5 Mbps |
| NAT(DHCP) | 939.6 Mbps / 940.9 Mbps |
| NAT(PPPoE) | 943.6 Mbps / 940.9 Mbps |
| NAT (L2TP) | 880.1 Mbps / 859.0 Mbps |
| NAT (PPTP) | 855.0 Mbps / 907.2 Mbps |
| Rendimiento VPN IPsec | • ESP-SHA1-AES256: 617.1 Mbps • ESP-SHA256-AES256: 592.8 Mbps • ESP-SHA384-AES256: 592.4 Mbps • ESP-SHA512-AES256: 604.5 Mbps |
| OpenVPN | 139.1 Mbps |
| Rendimiento VPN L2TP | • Unencrypted: 977.4 Mbps • Encrypted: 334.6 Mbps |
| Rendimiento VPN PPTP | • Unencrypted: 1064.1 Mbps • Encrypted: 206.8 Mbps |
| Rendimiento VPN SSL | 131.6 Mbps |
| 66 Byte Packet Forwarding Rate | 1,453,489 pps / 1,453,488 pps |
| 1,518 Byte Packet forwarding rate | 81,279 pps / 81,275 pps |
| FUNCIONES BÁSICAS | |
|---|---|
| Tipo de conexión WAN | • Static IP • Dynamic IP • PPPoE(supports MRU Configuration) • PPTP • L2TP |
| Clonado MAC | Modify WAN/LAN MAC Address (LAN MAC Address can be modified only in Standalone Mode) |
| DHCP | • DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP |
| IPv6 | StaticIP/SLAAC/DHCPv6/PPPoE/6to4Tunnel/PassThrough/Non-Address mode |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
| FUNCIONES AVANZADAS | |
|---|---|
| Enrutamiento Avanzado | • Static Routing • Policy Routing • RIP (available in Standalone Mode) • OSPF (available in Standalone Mode) |
| Control de Ancho de Banda | IP-based Bandwidth Control |
| Balanceo de Carga | • Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing, Failover) • Online Detection |
| NAT | • One-to-One NAT • Multi-Net NAT • Port Forwarding • Port Triggering§ • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP |
| Límite de sesión | IP-based Session Limit |
| VPN | |
|---|---|
| GRE | √ (Only in Standalone Mode) |
| SSL VPN | 50 Tunnels |
| VPN IPsec | • 100 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IPsec Failover • IKE v1/v2 • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) |
| VPN PPTP | • PPTP VPN Server • PPTP VPN Client (10)** • 50 Tunnels • PPTP with MPPE Encryption |
| VPN L2TP | • L2TP VPN Server • L2TP VPN Client (10)** • 50 Tunnels • L2TP over IPSec |
| OpenVPN | • OpenVPN Server • OpenVPN Client (5)** • 55 OpenVPN Tunnels • "Certificate + Account" Mode • Full Mode |
| WireGuard VPN | • 20 Tunnels |
| AUTENTICACIÓN | |
|---|---|
| Autenticación web | • No Authentication • Simple Password* • Hotspot (Local User /Voucher*/ SMS/Radius*) • External Radius Server • External Portal Sever<* • LDAP§ |
| GESTIÓN | |
|---|---|
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Gestión Centralizada | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Acceso a la nube | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Servicio | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
| Mantenimiento | • Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping & Traceroute) (only in Standalone Mode) • NTP Synchronize (only in Standalone Mode) • Port Mirroring • CLI (only in Standalone Mode) • Syslog Support |
| Aprovisionamiento sin contacto | Yes. Requires the use of Omada Cloud-Based Controller. |
| Funciones de gestión | • Automatic Device Discovery* • Batch Configuration* • Batch Firmware Upgrading* • Intelligent Network Monitoring* • Abnormal Event Warnings* • Unified Configuration* • Reboot Schedule* |
| Otros | |
|---|---|
| Certificaciones | CE, FCC, RoHS |
| Contenido del Paquete | • ER7406 • Power Cord • Quick Installation Guide • Rackmount Kit |
| Requisitos del sistema | • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10 • MAC OS, NetWare, UNIX or Linux |
| Factores Ambientales | • Operating Temperature: 0 °C to 50 °C (32 °F to 122°F) • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) • Operating Humidity: 10% to 90% non-condensing • Storage Humidity: 5% to 90% non-condensing |
