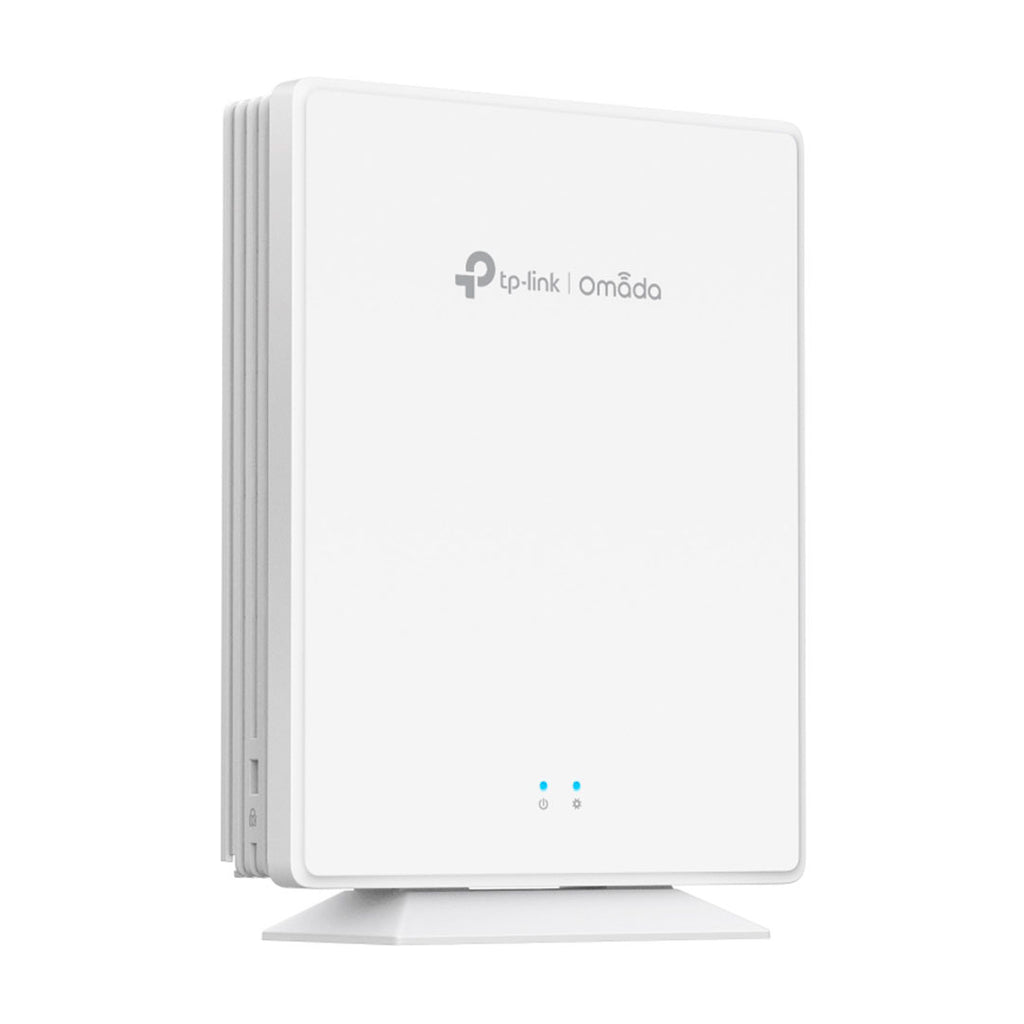

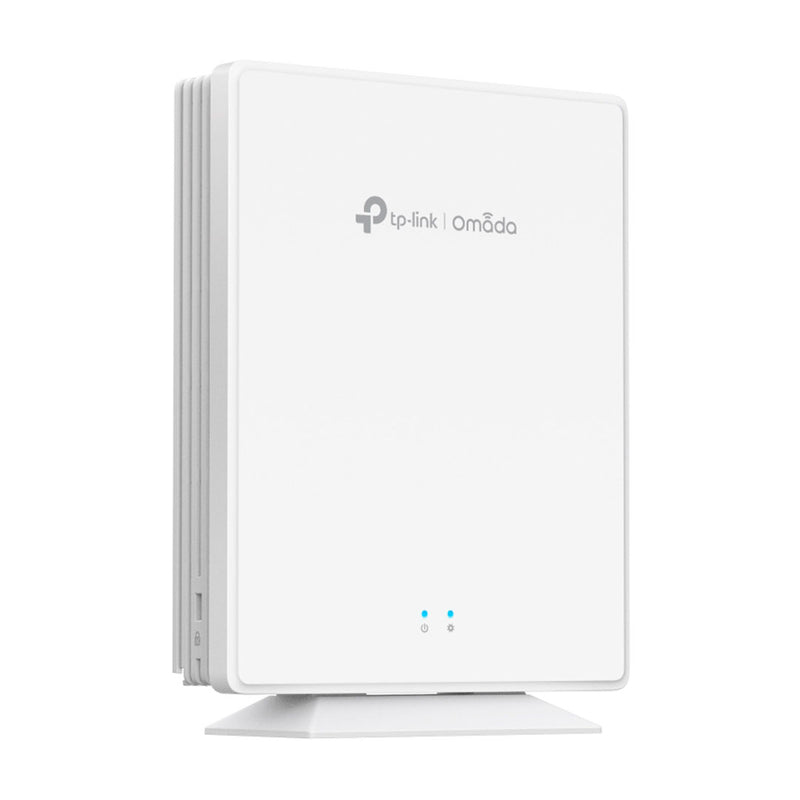

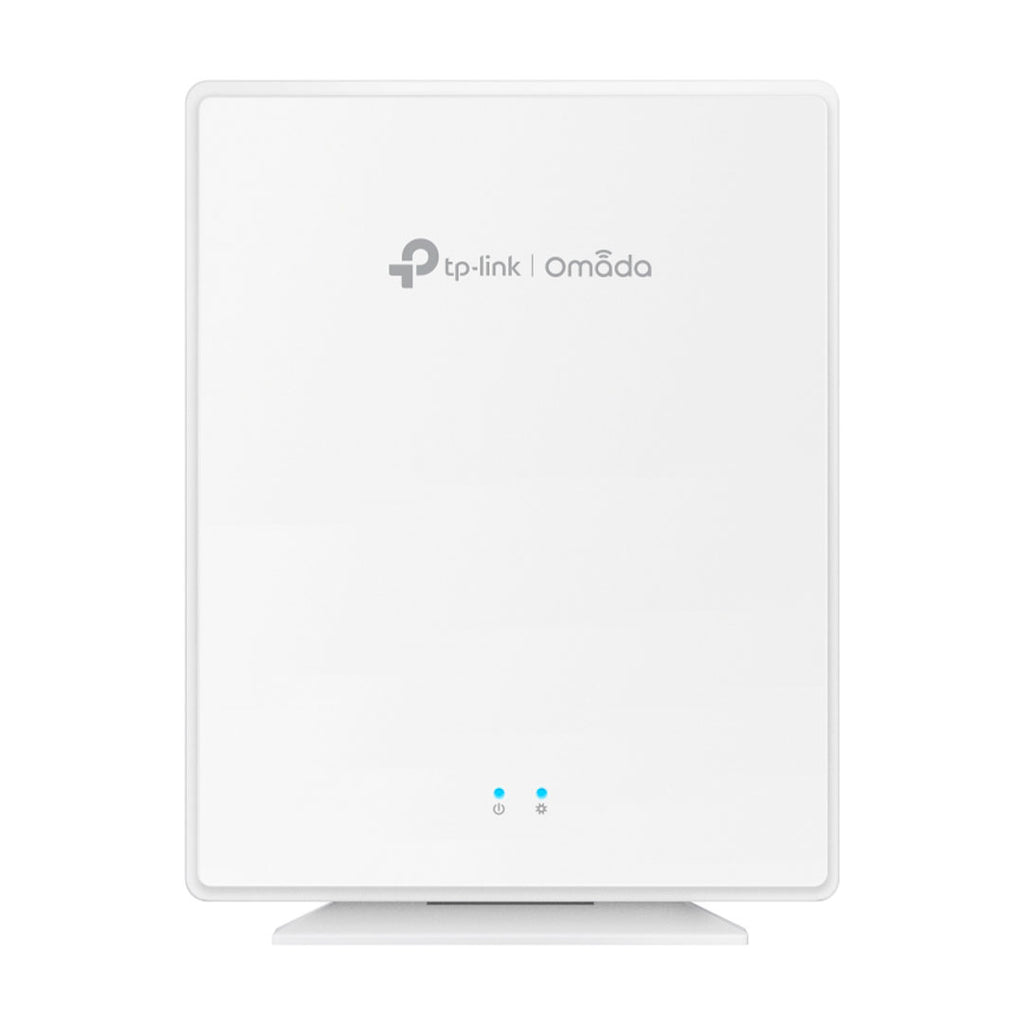

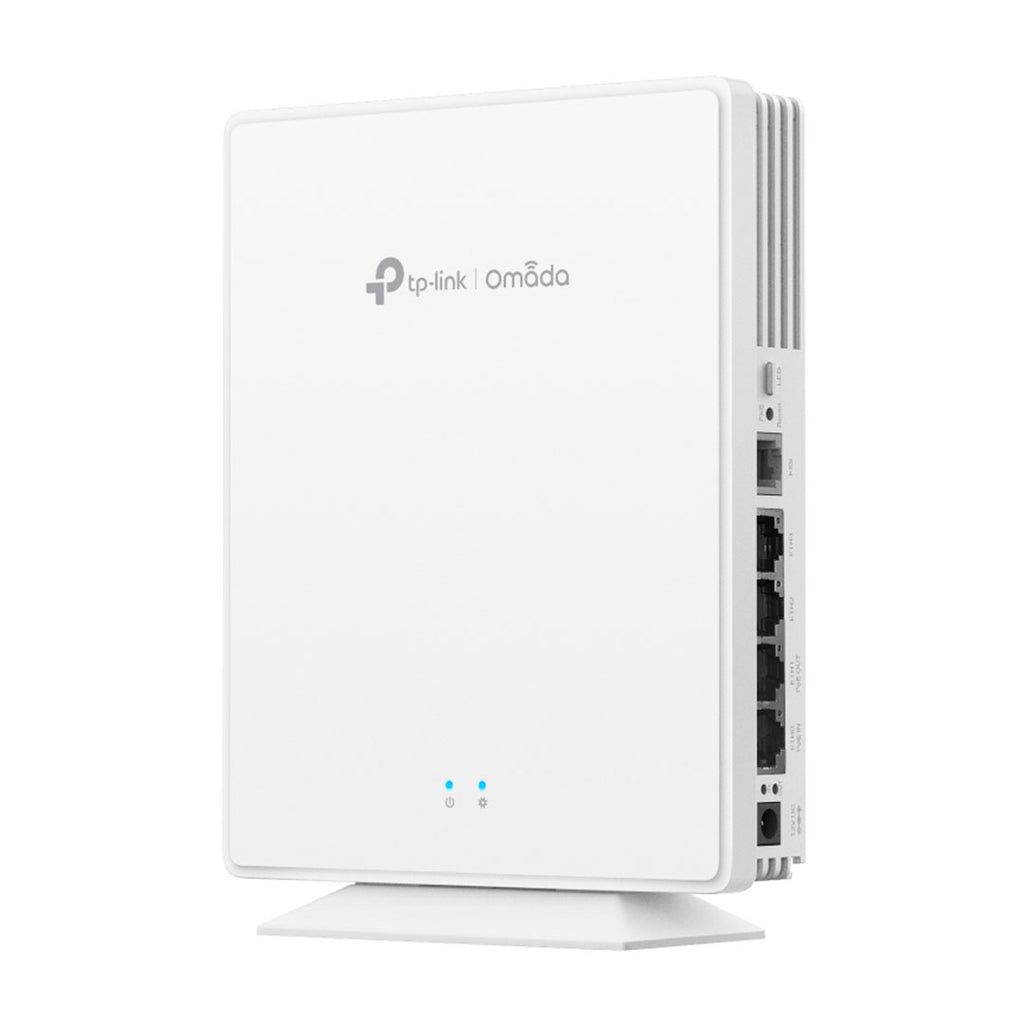

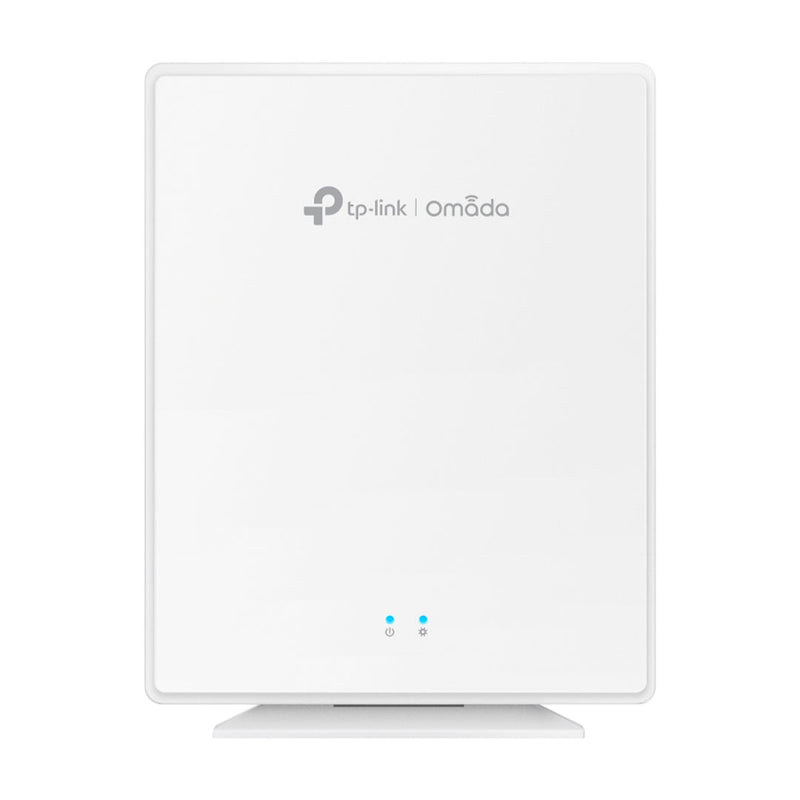

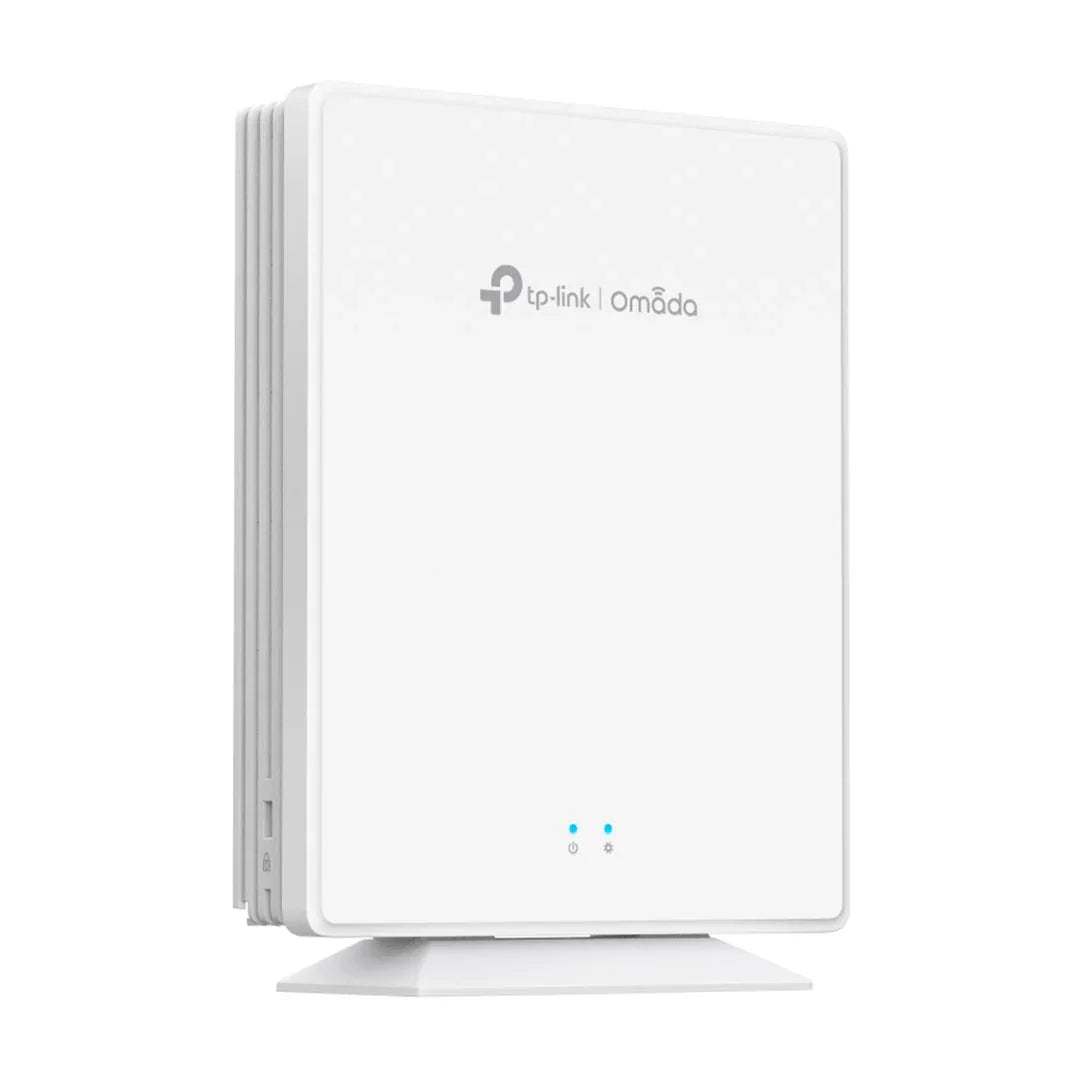

Punto de Acceso de Escritorio Omada Wi-Fi 6 AX3000
-
Velocidad Ultrarrápida Wi-Fi 6. Hasta 574 Mbps en 2.4 GHz y 2402 Mbps en 5GHz para alcanzar un total de 2976 Mbps. †
-
Puertos Gigabit. Conectividad Gigabit con hasta 4× Puertos Ethernet.
-
Facilidad en el Despliegue. Soporta alimentacion 802.3bt PoE++ y DC (adaptador incluído) para una instalación rápida y sencilla.
-
Sin Complejas Instalaciones. Instalación en escritorio sin la necesidad de montaje.
-
Gran Flexibilidad. Preparado para instalacion en escritorio y también en pared
-
Funciones Avanzadas. Omada Mesh, Roaming sin cortes, Gestión Cloud Centralizada
| CARACTERÍSTICAS DE HARDWARE |
| Interfaz |

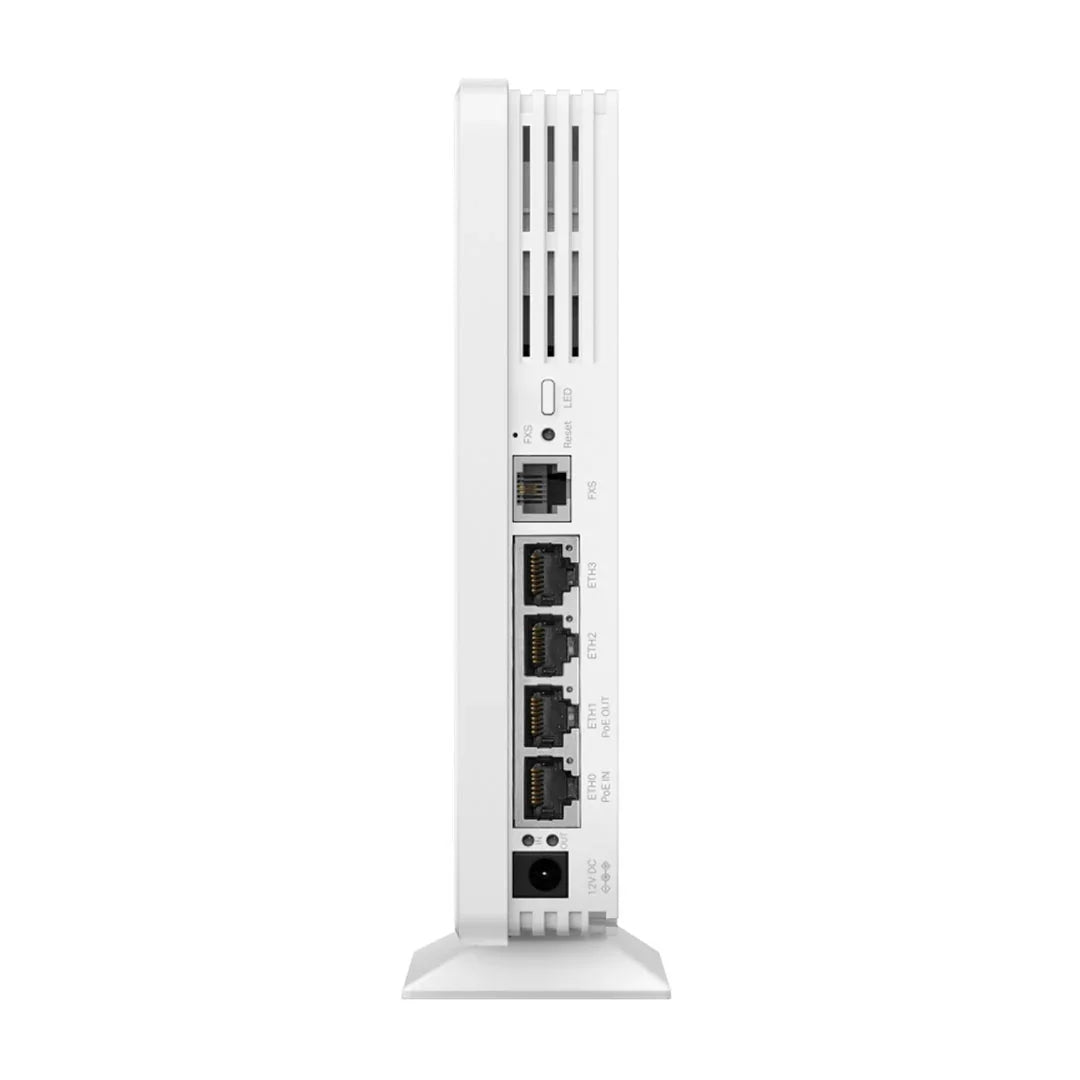

4× 1Gbps Ethernet Ports + 1× FXS Port (One Ethernet port supports PoE Out: 802.3at/af output at 802.3bt input, 802.3af class 2 output at 802.3at input) |
| Botones |
• Reset • LED |
| Fuente de Alimentación |
802.3 af/at/bt PoE or 12V/1.5A DC *PoE Out requires 802.3at/bt PoE power supply |
| Consumo de Potencia |
17.3W (PoE Out Off) |
| Peso |
452g (excluding mounting base) |
| Dimensiones |
6.9 × 5.5 × 1.3 in (175 × 140 × 33 mm) |
| Antenas |
Internal Omni • 2.4 GHz: 2× 5 dBi • 5 GHz: 3× 4.7 dBi |
| Alcance |
140㎡(1500 ft²)* |
| Montaje |

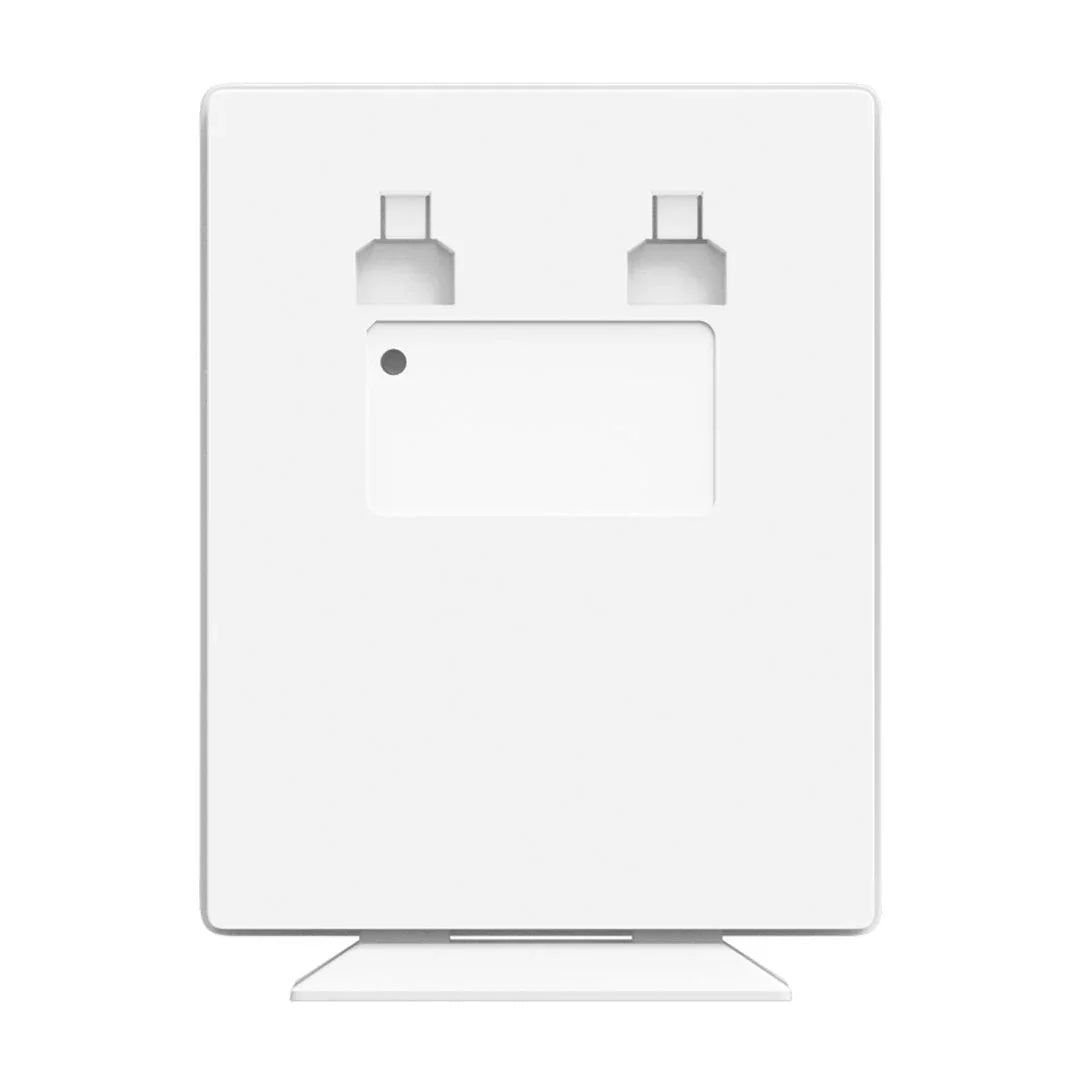

Desktop / Wall mouting (Kits included) |
| CARACTERÍSTICAS INALÁMBRICAS |
| Clientes concurrentes |
250+*
|
| Estándares Inalámbricos |
IEEE 802.11 a/b/g/n/ac/ax |
| Frecuencia |
2.4 GHz and 5 GHz |
| Tasa de Señal |
• 5 GHz: 2402 Mbps† • 2.4 GHz: 574 Mbps
|
| Funciones Inalámbricas |
• 2×2 (2.4G & 5G) MU-MIMO‡ • HE160 (160 MHz Bandwidth)‡ • OFDMA‡ • Omada Mesh • Seamless Roaming § • Multiple SSIDs (16 SSIDs, 8 on each band) • Enable/Disable SSID Broadcast • Enable/Disable Wireless Radio • Guest Network • Automatic Channel Assignment • Beamforming • Rate Limit (Based on SSID/Client) • Band Steering • Load Balance • Airtime Fairness • Transmit Power Control (Adjust Transmit Power on dBm) • QoS (WMM) • RADIUS Accounting • MAC Authentication • Reboot Schedule • Wireless Schedule and Statistics • Static IP/Dynamic IP |
| Seguridad Inalámbrica |
• Captive Portal Authentication§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Potencia de Transmisión |
• CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, band1 & band2, EIRP) <29 dBm(5 GHz, band3, EIRP)
• FCC: <26 dBm (2.4 GHz) <27 dBm (5 GHz)
|
| GESTIÓN |
| Omada App |
Yes |
| Gestión Centralizada |
• Omada Hardware Controller • Omada Software Controller • Omada Cloud-Based Controller |
| Acceso a la nube |
Yes. |
| Alertas por Correo Electrónico |
Yes |
| LED de control ON / OFF |
Yes |
| Control de Gestión de Acceso MAC |
Yes |
| SNMP |
v1, v2c, v3 |
| Acceso al Registro de Sistema Local/ Registro del Sistema Remoto |
System Log |
| SSH |
Yes |
| Gestión basada en Web |
Yes |
| Aprovisionamiento sin contacto |
Yes.Reauire the use of Omada Cloud-Based controller |
| Otros |
| Certificaciones |
CE, FCC, RoHS, IC |
| Contenido del Paquete |
• EAP650-Desktop • Desktop/Wall Mounting Kit • Installation Guide
|
| Requisitos del sistema |
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Factores Ambientales |
• Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
