| MARCA |
MSI |
|
| MODELO |
MPG B550 GAMING PLUS |
|
| CHIPSET |
AMD B550 |
|
| TIPO DE SOCKET |
AM4 AMD |
|
| PROCESADORES |
AMD COMPATIBLE |
Procesador AMD Ryzen 9 SAM4 5XXX
Procesador AMD Ryzen 7 SAM4 5XXX
Procesador AMD Ryzen 5 SAM4 5XXX
Procesador AMD Ryzen 5 SAM4 4XXX
Procesador AMD Ryzen 5 SAM4 3XXX
Procesador AMD Ryzen 3 SAM4 3XXX
|
| NOTA |
Incompatible con AMD Ryzen 5 3400G y Ryzen 3 3200G |
|
| MEMORIAS RAM |
COMPATIBLES |
Memoria RAM DDR4 4000 MHz PC4-32000
Memoria RAM DDR4 3600 MHz PC4-28800
Memoria RAM DDR4 3200 MHz PC4-25600
Memoria RAM DDR4 3000 MHz PC4-24000
Memoria RAM DDR4 2666 MHz PC4-21300
|
| NUMERO DE SOCKETS DIMM |
4 |
| EXPANSION MAXIMA EN GB |
128 |
| TECNOLOGIA |
Dual Channel
|
| TIPO DE RAM |
DDR4 |
|
| VIDEO |
Revisar caracteristicas del Procesador |
|
| SONIDO |
TECNOLOGIA |
High Definition (HD) |
| CHIPSET |
Realtek ALC892/ALC897 Codec
|
| CANALES |
7.1 |
|
| CONECTIVIDAD |
ETHERNET |
CHIPSET |
Realtek RTL8111H
|
| VELOCIDAD |
10 Mbps
100 Mbps
1000 Mbps
|
|
| ALMACENAMIENTO SERIAL ATA |
NUMERO DE PUERTOS |
6 |
| VELOCIDAD DE TRANSFERENCIA |
6 Gbit/s
|
| RAID SATA |
RAID 10
RAID 1
RAID 0
|
|
| ALMACENAMIENTO M.2 |
NUMERO TOTAL DE SLOTS M.2 KEY M |
2 |
| DISTRIBUCION DE SLOTS M.2 KEY M |
M.2 CONECTADO AL PROCESADOR |
1 PCIe 4.0 x4 y SATA, tipos 2242/2260/2280/22110
|
| M.2 CONECTADO AL CHIPSET |
1 PCIe 3.0 x4, tipos 2242/2260/2280
|
| RAID PCIE O NVME |
RAID 1
RAID 0
|
|
| SLOTS DE EXPANSION |
CONECTADO AL PROCESADOR |
1 PCI Express x16 slot, PCIe 4.0 modo x16
|
| CONECTADO AL CHIPSET |
2 PCI Express x1 slot, PCIe 3.0
1 PCI Express x16 slot, PCIe 3.0 modo x4
|
|
| PUERTOS INTERNOS |
FRONT PANEL AUDIO HEADER |
1 |
| USB 3.2 GEN 1 HEADER |
2 |
| USB 2.0 HEADER |
4 |
| USB 3.2 GEN 1 TIPO-C HEADER |
1 |
|

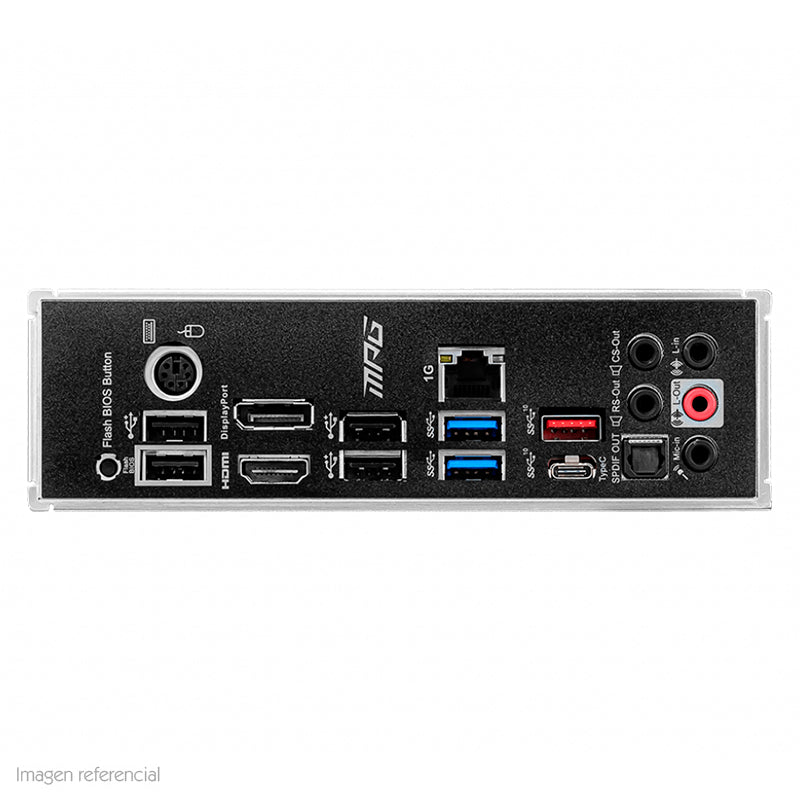

| PUERTOS BACK PANEL |
USB 3.2 GEN 2 TIPO-C |
1 |
| USB 3.2 GEN 2 TIPO-A |
1 |
| USB 3.2 GEN 1 TIPO-A |
2 |
| USB 2.0 TIPO-A |
4 |
| HDMI |
1 |
| DISPLAYPORT |
1 |
| RJ-45 |
1 |
| AUDIO JACKS |
5 |
| OPTICAL S/PDIF OUT |
1 |
| PS/2 COMBO |
1 |
| FLASH BIOS BUTTON |
1 |
|
| BIOS |
AMI BIOS UEFI |
|
| FACTOR DE FORMA Y DIMENSIONES |
FACTOR DE FORMA |
ATX |
| DIMENSIONES |
30.5cm x 24.4cm |
|
| PRESENTACION |
CAJA |
|
| CONECTORES FUENTE POWER |
1 x 24-pin ATX Main Power |
1 |
| 1 x 8-pin ATX 12V power |
1 |
