System
|
|
Main Processor
|
Industrial-grade processor
|
|
Operating System
|
Embedded Linux
|
|
Operating Interface
|
Web, Local GUI
|
|
AI
|
|
AI by Recorder
|
SMD Plus
|
|
AI by Camera
|
Perimeter protection; SMD
|
|
Perimeter Protection
|
|
Perimeter Performance of AI by Camera (Number of Channels)
|
All channels (8 targets/s)
|
|
SMD
|
|
SMD Plus by Recorder
|
4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
|
|
SMD by Camera
|
All channels (16 targets/s)
|
|
Audio and Video
|
|
Access Channel
|
8 channels
|
|
Network Bandwidth
|
AI disabled: 80 Mbps incoming, 80 Mbps recording and 80 Mbps outgoing
AI enabled: 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing
|
|
Resolution
|
16 MP;12 MP;8 MP;6 MP;5 MP;4 MP;3 MP;1080p;720p;960p;D1;CIF;QCIF
|
|
Decoding Capability
|
AI disabled: 1-channel 16 MP@30 fps; 2-channel 8 MP@30 fps; 3-channel 6 MP@30 fps; 4-channel 5 MP@30 fps; 5-channel 4 MP@30 fps; 6-channel 3 MP@30 fps; 8-channel 2 MP@30 fps
AI enabled: 1-channel 12 MP@30 fps; 2-channel 6 MP@30 fps; 3-channel 4 MP@30 fps; 4-channel 3 MP@30 fps; 6-channel 1080p@30 fps; 8-channel 720p@30 fps
|
|
Video Output
|
1 HDMI, 1 VGA
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
|
|
Multi-screen Display
|
1/4/8/9
|
|
Third-party Camera Access
|
ONVIF
|
|
Compression Standard
|
|
Video Compression
|
Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
|
|
Audio Compression
|
G.711a; G.711u; PCM; G726
|
|
Network
|
|
Network Protocol
|
HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; IP Filter; DDNS; IP Search (Supports IP camera, DVR, NVS, etc.); P2P; Auto Registration
|
|
Mobile Phone Access
|
iOS; Android
|
|
Interoperability
|
ONVIF 24.12(Profile T; Profile S; Profile G); CGI; SDK
|
|
Browser
|
Chrome; IE; Safari; Edge; Firefox
|
|
Wi-Fi
|
|
Wi-Fi Standard
|
802.11b/g/n/a/ac/ax
|
|
Frequency Range
|
2400-2483.5MHz, 5150-5350MHz, 5470-5725MHz, 5725-5850MHz
|
|
Transmitter Power (EIRP)
|
CE EIRP:
≤20dBm@2400-2483.5MHz;
≤23dBm@5150-5250MHz;
≤20dBm@5250-5350MHz;
≤27dBm@5470-5725MHz;
≤14dBm@5725-5850MHz
|
|
Recording Playback
|
|
Multi-channel Playback
|
Up to 8 channels
|
|
Record Mode
|
General, motion detection; intelligent; alarm
|
|
Backup Method
|
USB device and network
|
|
Playback Mode
|
Instant playback; general playback; event playback; tag playback; smart playback
|
|
Alarm
|
|
General Alarm
|
Motion detection; camera external alarm; PIR alarm
|
|
Anomaly Alarm
|
Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline
|
|
Intelligent Alarm
|
Perimeter protection; SMD Plus
|
|
Alarm Linkage
|
Recording; snapshot; buzzer; log; preset; email; tour
|
|

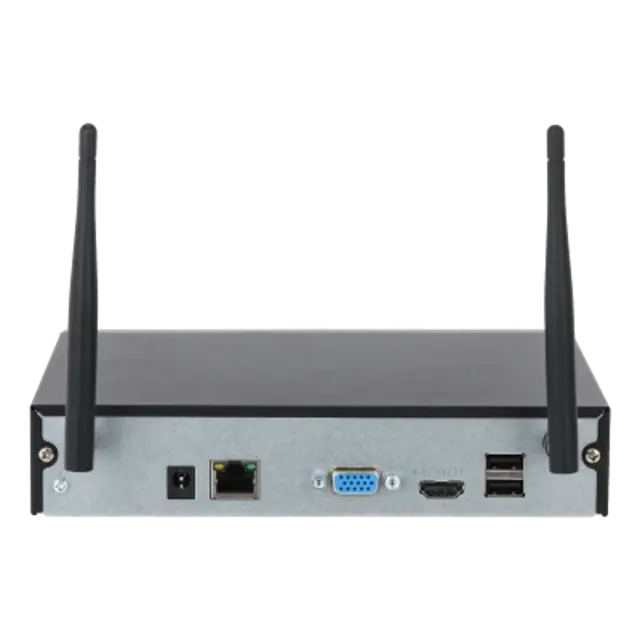

Port
|
|
Disk Interface
|
1 SATA port. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature.
|
|
USB
|
2 (2 rear USB 2.0 ports)
|
|
HDMI
|
1
|
|
VGA
|
1
|
|
Network Port
|
1 (10/100 Mbps Ethernet port, RJ-45)
|
|
Antenna
|
2
|
|
General
|
|
Power Supply
|
12 VDC, 1.5 A
|
|
Power Consumption
|
<6 W (without HDD)
|
|
Net Weight
|
0.57 kg (1.26 lb)
|
|
Gross Weight
|
0.98 kg (2.16 lb)
|
|
Product Dimensions
|
197.0 mm × 234.0 mm × 41.5 mm (7.76" × 9.21" × 1.63") (W × D × H)
|
|
Packaging Dimensions
|
332.0 mm × 240.0 mm × 64.0 mm (13.07" × 9.45" × 2.52") (W × D × H)
|
|
Operating Temperature
|
–10 °C to +45 °C (+14 °F to +113 °F)
|
|
Storage Temperature
|
–20 °C to +60 °C (–4 °F to +140 °F)
|
|
Operating Humidity
|
10%–93% (RH), non-condensing
|
|
Certifications
|
CE-LVD: IEC 62368-1:2014
CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
|
