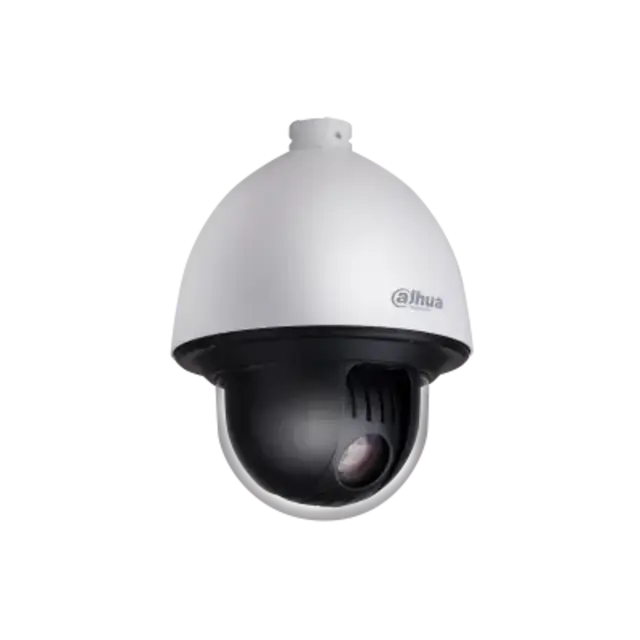

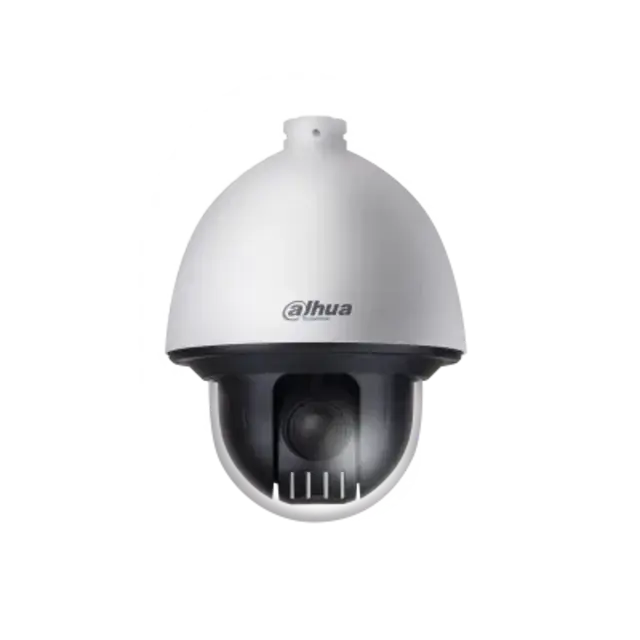

DAHUA DH-SD60432DB-HNY Cámara de Seguridad PTZ 4MP IP67 WIZSENSE

Camera

Image Sensor

1/2.8" CMOS

Pixel

4 MP

Max. Resolution

2560 (H) × 1440 (V)

ROM

128 MB

RAM

512 MB

Electronic Shutter Speed

1 s–1/30,000 s

Scanning System

Progressive

Min. Illumination

0.005 lux@F1.6 (Color, 30 IRE);
0.0005 lux@F1.6 (B/W, 30 IRE)

Lens

Focal Length

4.8 mm–154 mm

Max. Aperture

F1.6–F4.0

Field of View

H: 55.8°–2.3°; V: 31.9°–1.3°; D: 63.7°–2.7°

Optical Zoom

32 ×

Focus Control

Auto; semi-auto; manual

Close Focus Distance

0.1m-1.5 m (0.33 ft-4.92 ft)

Iris Control

Auto; manual

DORI Distance

Detect

Observe

Recognize

Identify

3080.0 m

(10104.99 ft)

1216.6 m (3991.47 ft)

616 m

(2021.00 ft)

308 m (1010.50 ft)

PTZ

Pan/Tilt Range

Pan: 0° to 360° endless;
Tilt: –20° to +90°, auto flip 180°

Manual Control Speed

Pan: 0.1°–300° /s;

Tilt: 0.1°–150° /s

Preset Speed

Pan: 0.1°–600° /s;

Tilt: 0.1°–500° /s

Preset

300

Tour

8 (up to 32 presets per tour)

Pattern

5

Scan

5

Power-off Memory

Yes

Idle Motion

Preset; Pattern; Tour; Scan

PTZ Protocol

DH-SD
Pelco-P/D (Auto recognition)

Intelligence

IVS (Perimeter Protection)

Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving;

parking detection; people gathering; vehicle/human alarm classification

Face Detection

Supports face detection, snapshot, and face enhancement;
Supports face cutout: Face, one-inch photo;
Capturing strategies include real-time capturing and quality first.

SMD

SMD3.0

Video

Video Compression

Smart H.265+; H.265; Smart H.264+;H.264;H.264B;H.264H;MJPEG(Sub Stream)

Streaming Capability

3 streams

Resolution

4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480)

Video Frame Rate

Main stream: 4M/1080p/1.3M/720p@(1–25/30 fps)
Sub stream 1: D1/VGA/CIF@(1–25/30 fps)
Sub stream 2: 720p@(1–25/30 fps)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 96 Kbps–14,848 Kbps
H.265: 38 Kbps–8,960 Kbps

Day/Night

Auto (ICR); Color/B/W

BLC

Yes

WDR

120 dB

HLC

Yes

White Balance

Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp

Gain Control

Auto; manual

Noise Reduction

2D NR; 3D NR

Motion Detection

Yes

Region of Interest (RoI)

Yes

Image Stabilization

Electronic Image Stabilization (EIS)

Defog

Electronic

Digital Zoom

16 ×

Image Rotation

180°

Privacy Masking

Up to 24 areas can be set, with up to 8 areas in the same view;
8 colors available

S/N Ratio

≥55 dB

Audio

Audio Compression

G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; PCM

Network

Network Port

RJ-45 (10/100 Base-T)

Network Protocol

HTTP; HTTPS; IPv4; RTSP; UDP; SMTP; NTP; DHCP;DNS; DDNS; IPv6; 802.1x; Qos; FTP; UPnP; ICMP; SNMP; SNMPv1/v2c/v3(MIB-2); IGMP; ARP; RTCP; RTP; PPPoE; TCP

Interoperability

ONVIF; Dahua SDK

Streaming Method

Unicast/Multicast

User/Host

20 (total bandwidth: 64 M)

Storage

FTP; Micro SD card (up to 512 GB); NAS

Browser

IE 7 and later versions;
Chrome 45 and later versions;
Firefox 52ESR and earlier versions;
All Safari versions

Management Software

Smart PSS; IVSS; NVR; Cloud Connection

Mobile Client

iOS; Android

Certification

Certification

CE: EN55032/EN55024/EN50130-4

FCC: Part15 subpartB,ANSI C63.4- 2014

UL: UL60950-1+CAN/CSA C22.2,No.60950-1

Port

Analog Output

1 channel (CVBS output, BNC)

RS-485

1 (baud rate: 1200 bps–9600 bps)

Audio Input

1 channel (LINE IN, bare wire)

Audio Output

1 channel (LINE OUT, bare wire)

Alarm Input

7 (on-off value input: 0–5 VDC)

Alarm Output

2 channels

Alarm Linkage

Capture; preset; tour; pattern; recording; alarm digital output; send email;

Alarm Event

Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection

Power

Power Supply

24 VDC, 2.5 A ± 25% (included)
PoE+ (802.3at)

Power Consumption

Basic: 13 W;
Max: 18 W (PTZ)

Environment

Operating Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Operating Humidity

≤95%

Protection

IP67; TVS 6000 V lightning proof; surge protection; IK10

Structure

Product Dimensions

292.0 mm × Φ222.0 mm (11.50" × Φ8.74")

Net Weight

3.4 kg (7.50 lb)

Gross Weight

6.4 kg (14.10 lb)
