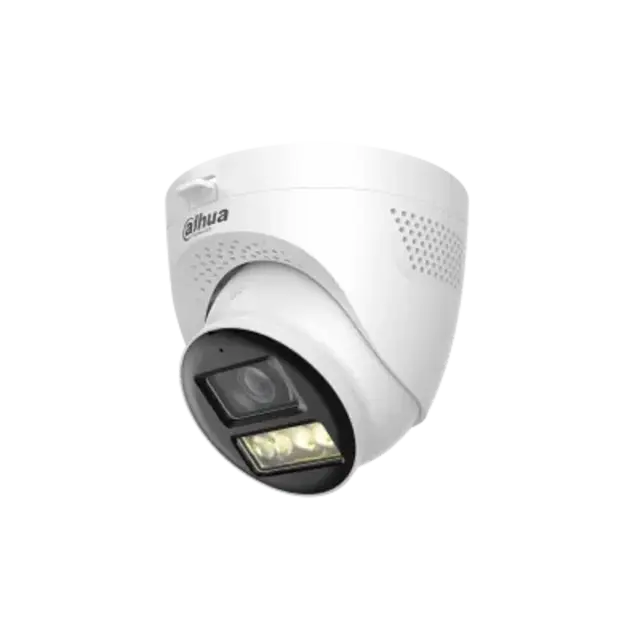

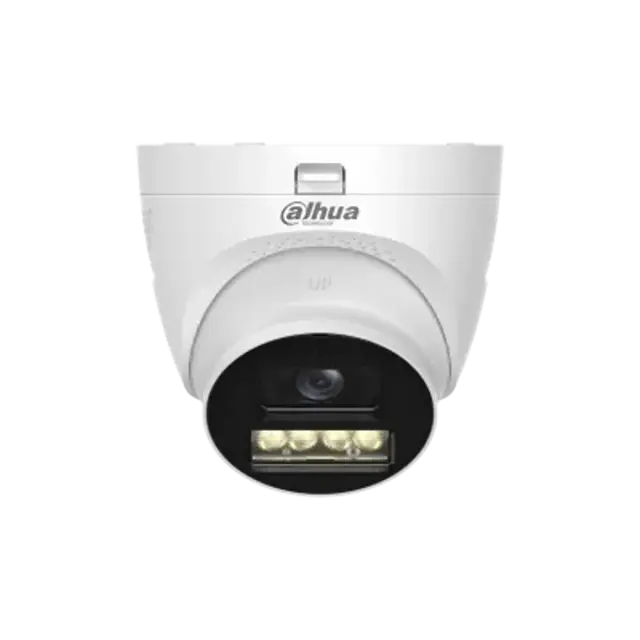

DAHUA DH-HAC-HDW1500TQN-IL-T Cámara de Seguridad 5MP HDCVI

Pasa el cursor sobre la imagen para ampliarla. Clic en la imagen para aumentar

DAHUA DH-HAC-HDW1500TQN-IL-T Cámara de Seguridad 5MP HDCVI

Name: DAHUA DH-HAC-HDW1500TQN-IL-T Cámara de Seguridad 5MP HDCVI
Brand: DAHUA
SKU: DH-HAC-HDW1500TQN-IL-T
Price: 147.00 PEN
Availability: InStock

Ahorrar S/. 16.00

DAHUASKU: DH-HAC-HDW1500TQN-IL-T

0 reseña

Precio:

S/. 147.00 S/. 163.00

Gastos de envío calculados en la caja

Stock:

Disponible

Cantidad:

VER FICHA TÉCNICA

Comparte este producto

Video
Video Frame Rate																		CVI: PAL: 5M@25 fps; 5M@12.5 fps; 4M@25 fps; 1080p@25 fps NTSC: 5M@25 fps; 5M@20 fps; 5M@10 fps; 4M@30 fps; 1080p@30 fps AHD: PAL: 4M@25 fps NTSC: 4M@30 fps TVI: PAL: 5M 16:9@20 fps NTSC: 5M 16:9@20 fps CVBS: PAL: 960H NTSC: 960H
Resolution																		5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 720p (1280 × 720); TVI 5M 16:9 (2960 × 1665)
Day/Night																		Auto(ICR)/Color/B/W
BLC																		BLC; HLC; WDR
WDR																		DWDR
White Balance																		Auto; Area white balance
Gain Control																		Auto/Manual
Noise Reduction																		3D NR
Illumination Mode																		Smart IR&WL (CVI, TVI); WL Mode; IR Mode
Mirror																		Yes
Privacy Masking																		Off/On (8 areas, rectangle)
Port
Video Output																		Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)
Environment
Operating Temperature																		–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity																		<95% (RH), non-condensing
Storage Temperature																		–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity																		<95% (RH), non-condensing
Protection																		IP67
Anti-corrosion Level																		Basic Protection *The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection.
Lens
Lens Type																		Fixed-focal
Auto Focus																		No
Lens Mount																		M12
Focal Length																		2.8 mm
Max. Aperture																		F1.6
Field of View																		H: 113.3°; V: 62.1°; D: 134.3°
Iris Control																		Fixed
Close Focus Distance																		0.8 m (2.62 ft)
DORI Distance																		D: 59.8 m; O: 23.9 m; R: 12.0 m; I: 6.0 m (D: 196.19 ft; O: 78.41 ft; R: 39.37 ft; I: 19.69 ft) *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Camera
Pixel																		5 MP
Appearance																		Eyeball
Image Sensor																		1/2.7" CMOS
Max. Resolution																		2880 (H) × 1620 (V)
Scanning System																		Progressive
Electronic Shutter Speed																		PAL: 1/25 s–1/100,000 s NTSC: 1/30 s–1/100,000 s
Min. Illumination																		0.01 lux@F1.6 (Color, 30 IRE) 0.001 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on)
S/N Ratio																		>65 dB
Illumination Distance																		IR: 40 m (131.23 ft) Warm light: 40 m (131.23 ft)
Illuminator On/Off Control																		Auto; Manual
Illuminator Number																		4 (Multi-core light)
Angle Adjustment																		Pan: 0°–360° Tilt: 0°–75° Rotation: 0°–360°
SD/HD Switch																		DIP switch
Audio
Built-in Mic																		Yes
Camera Audio																		CVI; TVI
Pick-up Distance																		8 m (26.25 ft)
Two-way Talk																		Yes (CVI, TVI)
Speaker																		Yes
Speaker Distance																		8 m (26.25 ft)
Structure
Casing Material																		Dome (metal + plastic) + plastic enclosure
Product Dimensions																		Φ109.9 mm × 105.9 mm (Φ4.33" × 4.17")
Net Weight																		0.50 kg (1.1 lb)
Gross Weight																		0.64 kg (1.41 lb)
Installation																		Wall mount; ceiling mount; vertical pole mount
Certification
Certifications																		CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035;
Power
Power Supply																		12 VDC (±30%) (It is recommended to use a power adapter to supply the power for one camera)
Power Consumption																		Max 9.5 W (12 VDC, WLED on)

DAHUA DH-HAC-HDW1500TQN-IL-T Cámara de Seguridad 5MP HDCVI

Descripción

DAHUA DH-HAC-HDW1500TQN-IL-T Cámara de Seguridad 5MP HDCVI
