Descripción

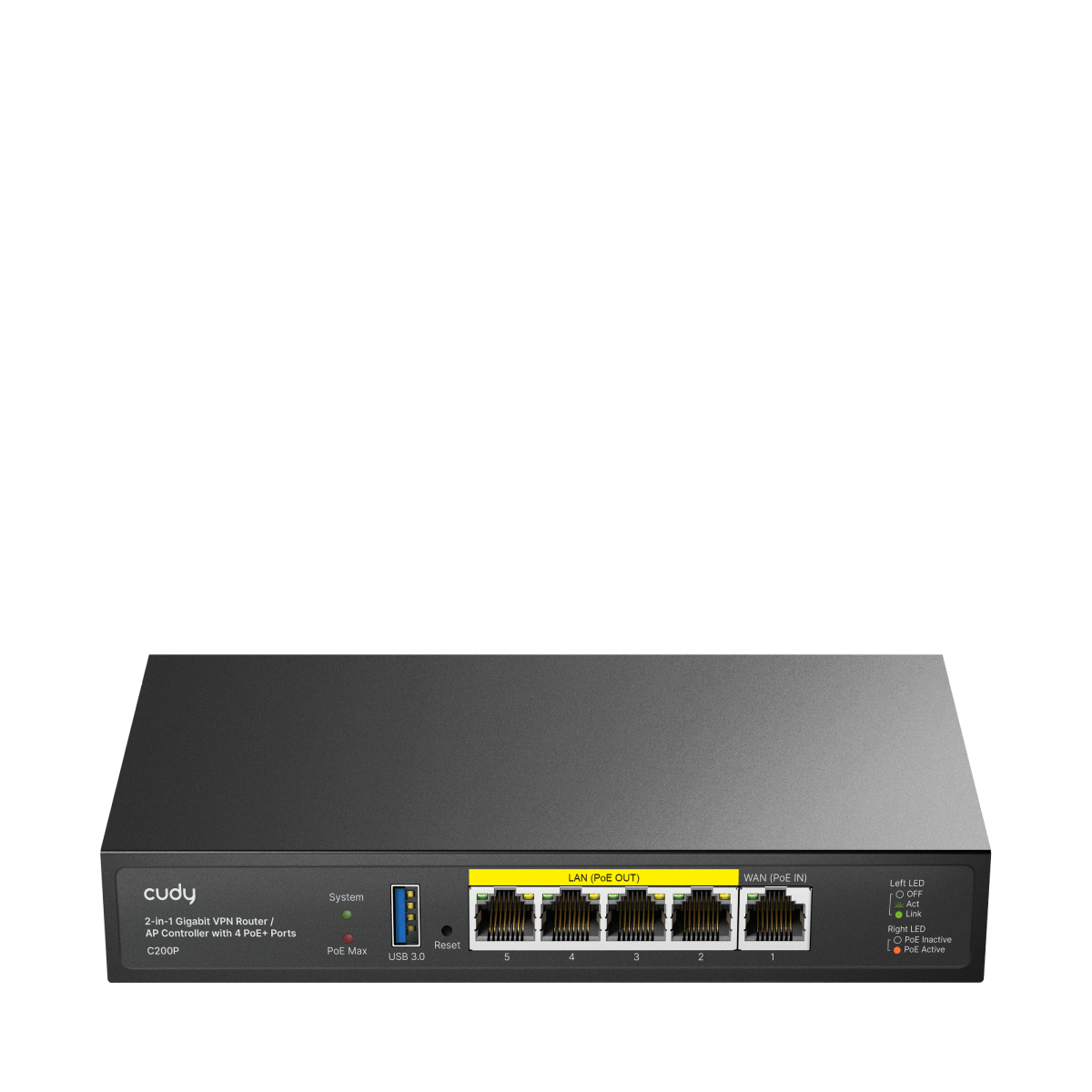

Router VPN Gigabit 2 en 1/Controlador de punto de acceso con 4 puertos PoE+
C200P
Un router Gigabit que funciona como controlador de puntos de acceso Cudy en demandas de Wi-Fi para toda la casa, con cuatro salidas PoE y funciones Cudy Mesh.
- 4× GbE con 802.3at/af Modo A PoE
- 1 puerto Gigabit Ethernet
- 1 puerto USB 3.0
- Fuente de alimentación de 60 W
- Administrar 200 AP
- Portal cautivo
- Servidor y cliente VPN
ESPECIFICACIONES:
| Versión del modelo | C200P 1.0 | |
|---|---|---|
| CPU | CPU Details | 880 MHz Dual-Core |
| Memory/Storage | Flash/ROM | 16 MB (128 Mbit) NOR |
| DDR/RAM | 256 MB (2 Gbit) DDR3 | |
| Interfaces | Gigabit RJ45 Ports | 5 |
| Gigabit RJ45 PoE Ports | #2~#5 | |
| Max Power on a Single PoE Ports | 30W | |
| PoE Ports Notes | The PoE ports comply with IEEE 802.3at/af standards. | |
| Ethernet Notes | 1× WAN Port, 4× LAN Ports | |
| USB-A 3.0 Ports | 1 | |
| USB-A Notes | 5V/1A | |
| LED |
|
|
| Physical Buttons | Reset Button | |
| Power | Power Input Type | DC Jack |
| Power Methods |
|
|
| Power Methods Note | The Ethernet ports provide PoE power only when the C200P is powered by DC. | |
| Power Input |
|
|
| Power Adapter In the Box | Input: 100-240V~, 50Hz Output: 54V⎓1.11A |
|
| Max Power Consumption (W) | Total: 60W PoE: 55W PoE (when USB Device is plugged in): 50W No PoE: 5W |
|
| Idle Power Consumption (W) | 2W | |
| Reliability | EMC | IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV |
| Environment | Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Operating Humidity: 5% ~ 95% non-condensing Storage Humidity: 0% ~ 100% non-condensing |
|
| Grounding Methods | Grounding Point | |
| Certifications | FCC, CE | |
| Mechanical | Installation |
|
| Casing Material | Metal | |
| Dimension | 190×100×28 mm 7.48×3.94×1.1 inches |
|
| Product Weight | 454.0 g (16.01 oz.) | |

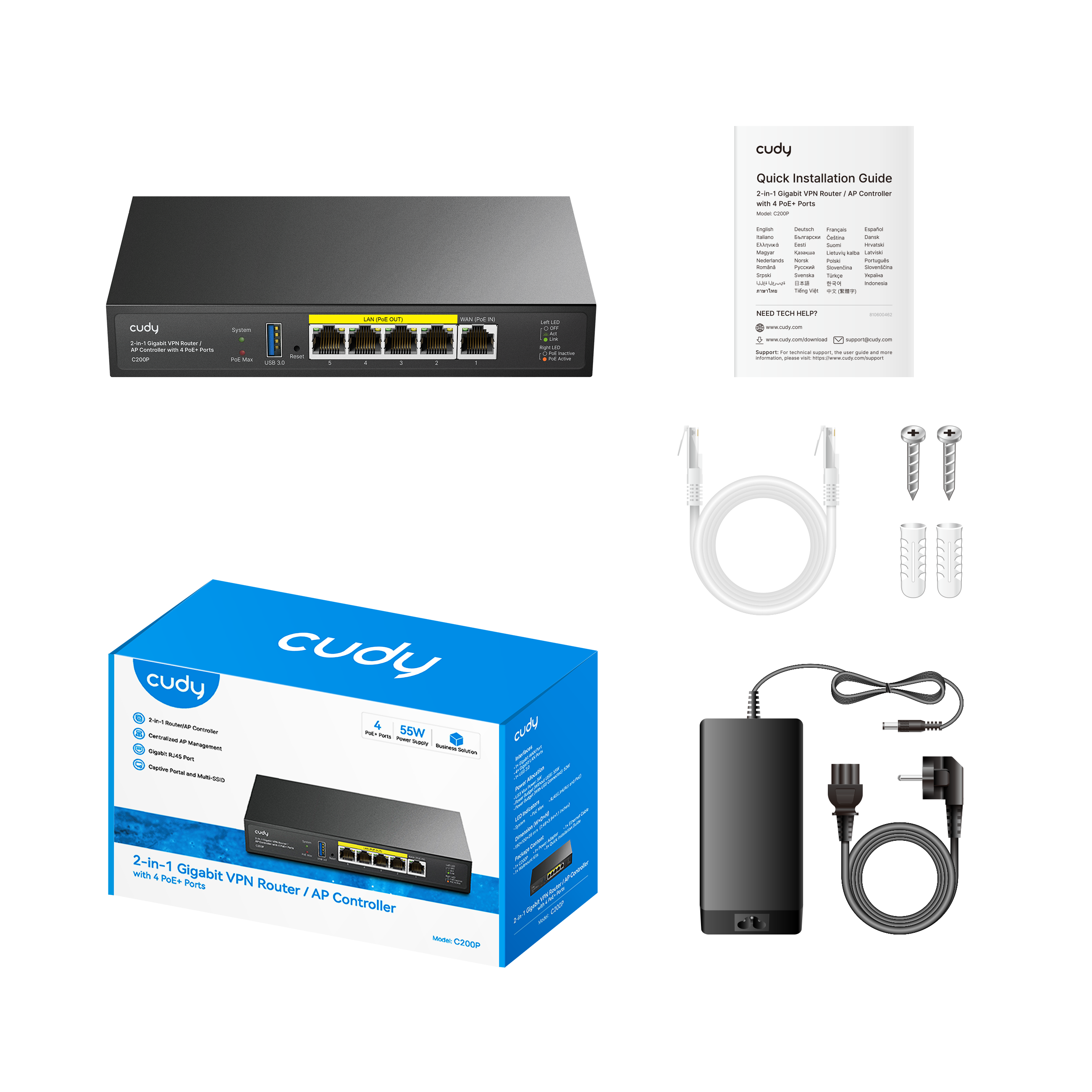

| Package Content |
|
|
| Ordering Information | Retail Package Dimension | 209×132×81.5 mm 8.23×5.2×3.21 inches |
| Retail Package Weight | EU: 1024.0 g (36.12 oz.) | |
| Units per Carton | 10 | |
| Carton Net Weight | EU: 10.2 kg (22.49 lbs) | |
| Carton Gross Weight | EU: 10.9 kg (24.03 lbs) | |
| Carton Dimension | 43.8×42.8×15.1 cm 17.24×16.85×5.94 inches |
|
| Compatibility | Compatible Products | AP1300 1.0, AP3000 Outdoor 1.0, AP3000 1.0, AP1300 Outdoor 1.0, AP11000 1.0, AP3000_P 1.0, AP1300_P 1.0, AP1300 Wall 1.0, AP3000 Wall 1.0, AP3000E Wall 1.0, AP1300D 1.0, AP1300E Wall 1.0, AP3600 1.0, AP6500 1.0, AP1300 2.0, AP3000S 1.0 |
