| MARCA |
ASUS |
|
| MODELO |

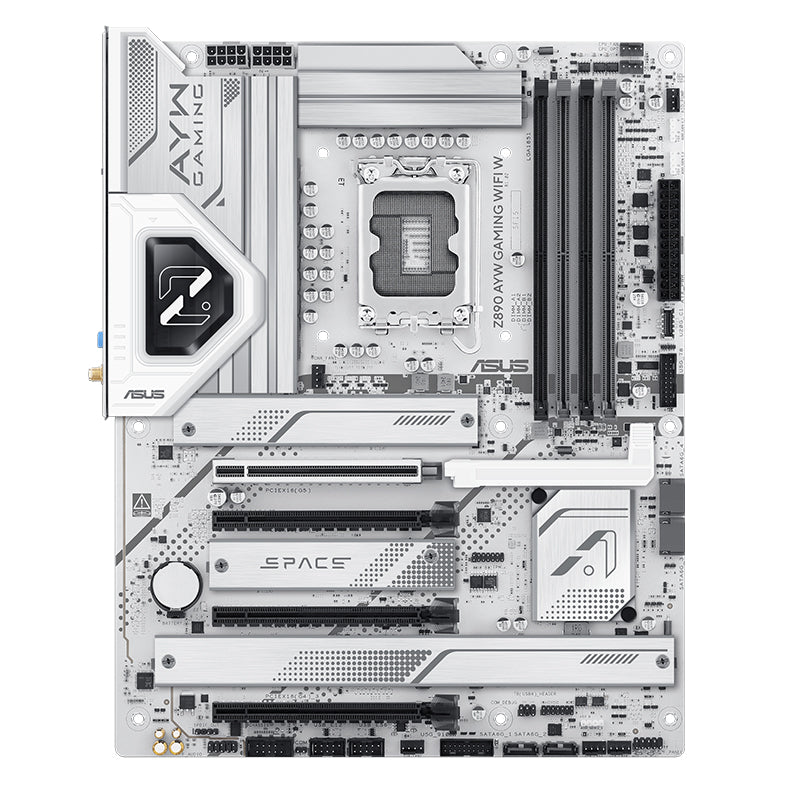

Z890 AYW GAMING WIFI W |
|
| CHIPSET |
INTEL Z890 |
|
| TIPO DE SOCKET |
LGA1851 INTEL |
|
| PROCESADORES |
INTEL COMPATIBLE |
Procesador Core Ultra 9 S1851 - Series 2
Procesador Core Ultra 7 S1851 - Series 2
Procesador Core Ultra 5 S1851 - Series 2
Procesador Core Ultra 3 S1851 - Series 2
|
|
| MEMORIAS RAM |
COMPATIBLES |
Memoria RAM DDR5 8200 MHz PC5-65600
Memoria RAM DDR5 7600 MHz PC5-60800
Memoria RAM DDR5 7200 MHz PC5-57600
Memoria RAM DDR5 6800 MHz PC5-54400
Memoria RAM DDR5 6400 MHz PC5-51200
Memoria RAM DDR5 6000 MHz PC5-48000
Memoria RAM DDR5 5600 MHz PC5-44800
Memoria RAM DDR5 5200 MHz PC5-41600
Memoria RAM DDR5 4800 MHz PC5-38400
|
| NUMERO DE SOCKETS DIMM |
4 |
| EXPANSION MAXIMA EN GB |
192 |
| TECNOLOGIA |
Intel XMP
Dual Channel
|
| TIPO DE RAM |
DDR5 |
|
| VIDEO |
Revisar caracteristicas del video del procesador. |
|
| SONIDO |
TECNOLOGIA |
Realtek 7.1 Surround Sound High Definition |
| CHIPSET |
Realtek Audio Codec
|
| CANALES |
7.1 |
|
| CONECTIVIDAD |
ETHERNET |
CHIPSET |
Realtek 2.5Gb
|
| VELOCIDAD |
100 Mbps
1000 Mbps
2500 Mbps
|
| WIRELESS |
CHIPSET |
Wi-Fi 6 |
| PROTOCOLOS |
802.11ax
802.11ac
802.11n
802.11g
802.11b
802.11a
|
| BANDAS DE FRECUENCIA |
5 GHz
2.4 GHz
|
| BLUETOOTH VERSION |
5.3 |
|
| ALMACENAMIENTO SERIAL ATA |
NUMERO DE PUERTOS |
4 |
| VELOCIDAD DE TRANSFERENCIA |
6 Gbit/s
|
| RAID SATA |
RAID 10
RAID 5
RAID 1
RAID 0
|
|
| ALMACENAMIENTO M.2 |
NUMERO TOTAL DE SLOTS M.2 KEY M |
4 |
| M.2 CPU |
1 x PCIe 5.0 x4 tipos |
2280
22110
|
| 1 x PCIe 4.0 x4 tipos |
2280
|
| M.2 CHIPSET |
1 x PCIe 4.0 x4 tipos |
2280
22110
|
| 1 x PCIe 4.0 x4 y SATA tipos |
2280
|
| RAID PCIe o NVMe |
RAID 10
RAID 5
RAID 1
RAID 0
|
|
| SLOTS DE EXPANSION |
PCI Express CPU |
PCI Express x16 slot, PCIe 5.0 modo x16 |
1 |
| PCI Express CHIPSET |
PCI Express x16 slot, PCIe 4.0 modo x4 |
2 |
| PCI Express x1 slot, PCIe 4.0 |
1 |
|
| PUERTOS INTERNOS |
FRONT PANEL AUDIO HEADER |
1 |
| USB 3.2 GEN 2X2 TIPO-C HEADER |
1 |
| USB 3.2 GEN 1 HEADER |
4 |
| USB 2.0 HEADER |
4 |
|

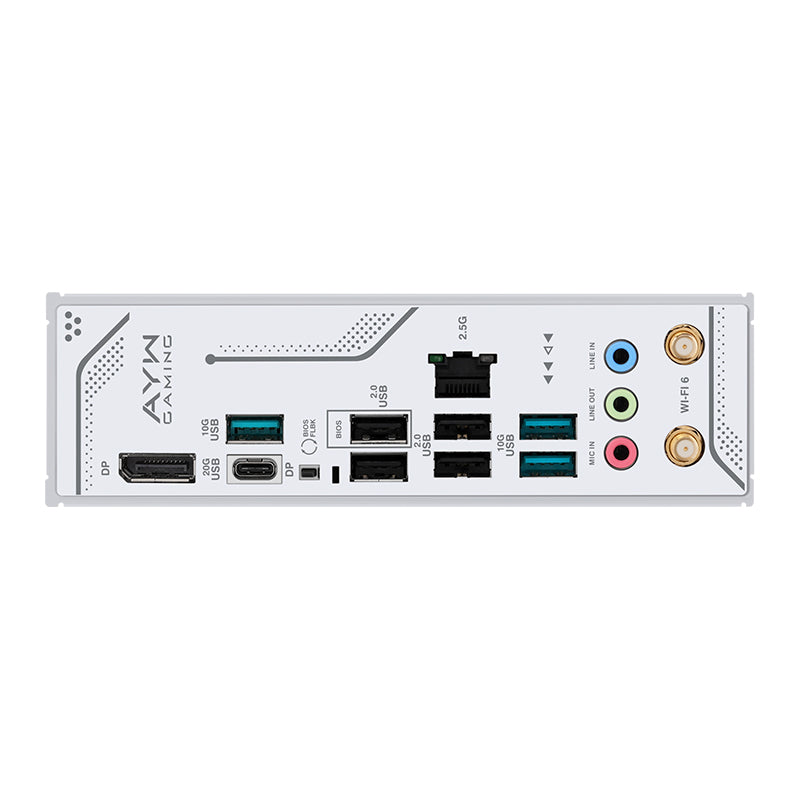

| PUERTOS BACK PANEL |
USB 3.2 GEN 2 TIPO-A |
3 |
| USB 2.0 TIPO-A |
4 |
| DISPLAYPORT |
1 |
| RJ-45 |
1 |
| AUDIO JACKS |
3 |
| WI-FI / BLUETOOTH ANTENNA |
2 |
| BOTON BIOS FLASHBACK |
1 |
| USB 3.2 GEN 2 TIPO-C (DISPLAY PORT) |
1 |
|
| BIOS |
AMI BIOS UEFI |
|
| FACTOR DE FORMA Y DIMENSIONES |
FACTOR DE FORMA |
ATX |
| DIMENSIONES |
30.5 cm x 24.4 cm |
|

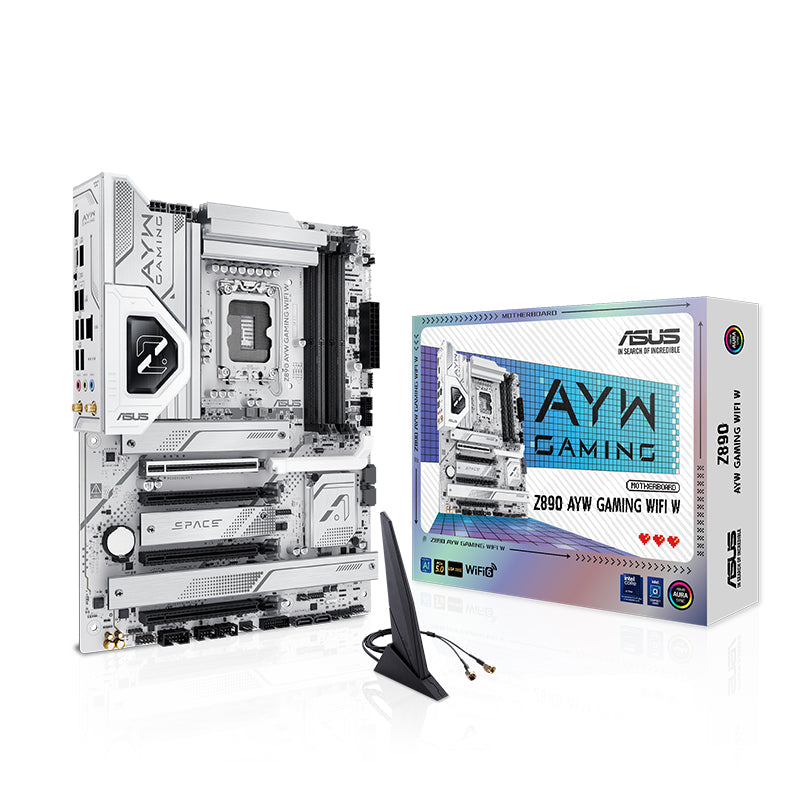

| PRESENTACION |
CAJA |
|
| CONECTORES FUENTE POWER |
1 x 24-pin ATX Main Power |
1 |
| 1 x 8-pin ATX 12V power |
2 |
|
