| MARCA |
ASUS |
|
| MODELO |

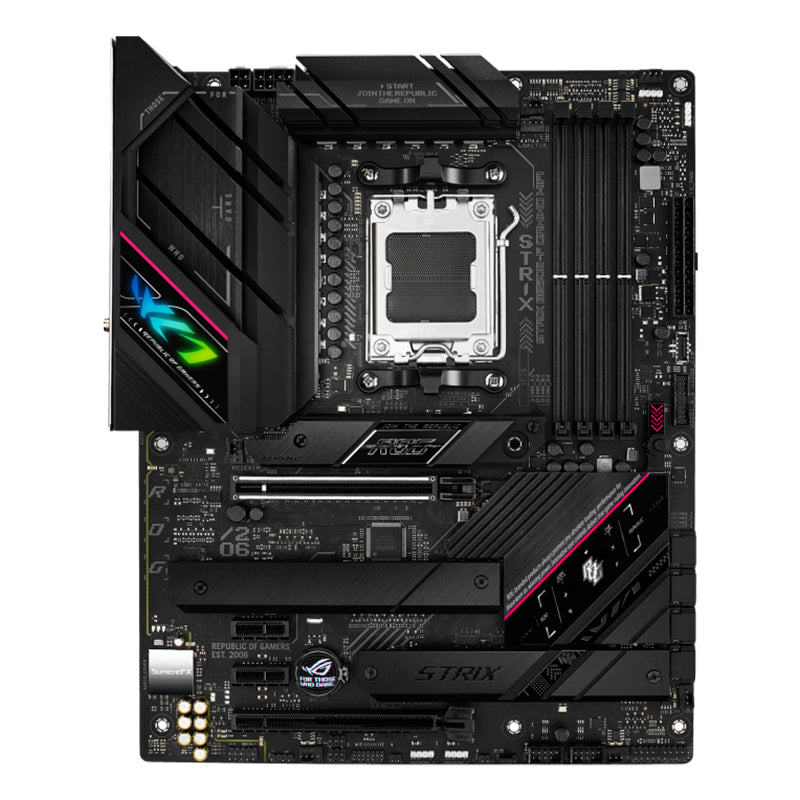

ROG STRIX B650E-F GAMING WIFI |
|
| CHIPSET |
AMD B650 |
|
| TIPO DE SOCKET |
AM5 AMD |
|
| PROCESADORES |
AMD COMPATIBLE |
Procesador AMD Ryzen 9 SAM5 7XXX
Procesador AMD Ryzen 7 SAM5 7XXX
Procesador AMD Ryzen 5 SAM5 7XXX
|
|
| MEMORIAS RAM |
COMPATIBLES |
Memoria RAM DDR5 6000 MHz PC5-48000
Memoria RAM DDR5 5600 MHz PC5-44800
Memoria RAM DDR5 5200 MHz PC5-41600
Memoria RAM DDR5 4800 MHz PC5-38400
|
| NUMERO DE SOCKETS DIMM |
4 |
| EXPANSION MAXIMA EN GB |
128 |
| TECNOLOGIA |
AMD EXPO
Dual Channel
OptiMem II
|
| TIPO DE RAM |
DDR5 |
|
| VIDEO |
Revisar caracteristicas del Procesador |
|
| SONIDO |
TECNOLOGIA |
ROG SupremeFX 7.1 Surround Sound High Definition |
| CHIPSET |
Realtek ALC4080 Codec
|
| CANALES |
7.1 |
|
| CONECTIVIDAD |
ETHERNET |
CHIPSET |
Intel I225-V
|
| VELOCIDAD |
10 Mbps
100 Mbps
1000 Mbps
2500 Mbps
|
| WIRELESS |
CHIPSET |
Wi-Fi 6E 2x2 |
| PROTOCOLOS |
802.11ax
802.11ac
802.11n
802.11g
802.11b
802.11a
|
| BANDAS DE FRECUENCIA |
5 GHz
2.4 GHz
|
| BLUETOOTH VERSION |
5.2 |
|
| ALMACENAMIENTO SERIAL ATA |
NUMERO DE PUERTOS |
4 |
| VELOCIDAD DE TRANSFERENCIA |
6 Gbit/s
|
| RAID SATA |
RAID 10
RAID 1
RAID 0
|
|
| ALMACENAMIENTO M.2 |
NUMERO TOTAL DE SLOTS M.2 KEY M |
3 |
| DISTRIBUCION DE SLOTS M.2 KEY M |
M.2 CONECTADO AL PROCESADOR |
1 PCIe 5.0 x4, tipos 2242/2260/2280
1 PCIe 4.0 x4, tipos 2242/2260/2280/22110
|
| M.2 CONECTADO AL CHIPSET |
1 PCIe 4.0 x4, tipos 2242/2260/2280/22110
|
| RAID PCIE O NVME |
RAID 10
RAID 1
RAID 0
|
|
| SLOTS DE EXPANSION |
CONECTADO AL PROCESADOR |
1 PCI Express x16 slot, PCIe 5.0 modo x16
|
| CONECTADO AL CHIPSET |
2 PCI Express x1 slot, PCIe 4.0
1 PCI Express x16 slot, PCIe 4.0 modo x4
|
|
| PUERTOS INTERNOS |
FRONT PANEL AUDIO HEADER |
1 |
| USB 3.2 GEN 2 TIPO-C HEADER |
1 |
| USB 3.2 GEN 1 HEADER |
2 |
| USB 2.0 HEADER |
4 |
|
| PUERTOS BACK PANEL |
USB 3.2 GEN 2X2 TIPO-C |
1 |
| USB 3.2 GEN 2 TIPO-C |
1 |
| USB 3.2 GEN 2 TIPO-A |
2 |
| USB 3.2 GEN 1 TIPO-A |
4 |
| USB 2.0 TIPO-A |
4 |
| HDMI |
1 |
| DISPLAYPORT |
1 |
| RJ-45 |
1 |
| AUDIO JACKS |
5 |
| WI-FI / BLUETOOTH ANTENNA |
2 |
| BOTON BIOS FLASHBACK |
1 |
|
| BIOS |
AMI BIOS UEFI |
|
| FACTOR DE FORMA Y DIMENSIONES |
FACTOR DE FORMA |
ATX |
| DIMENSIONES |
30.5cm x 24.4cm |
|
| PRESENTACION |
CAJA |
|
| CONECTORES FUENTE POWER |
1 x 24-pin ATX Main Power |
1 |
| 1 x 8-pin ATX 12V power |
1 |
| 1 x 4-pin ATX 12V power |
1 |
