Descrição

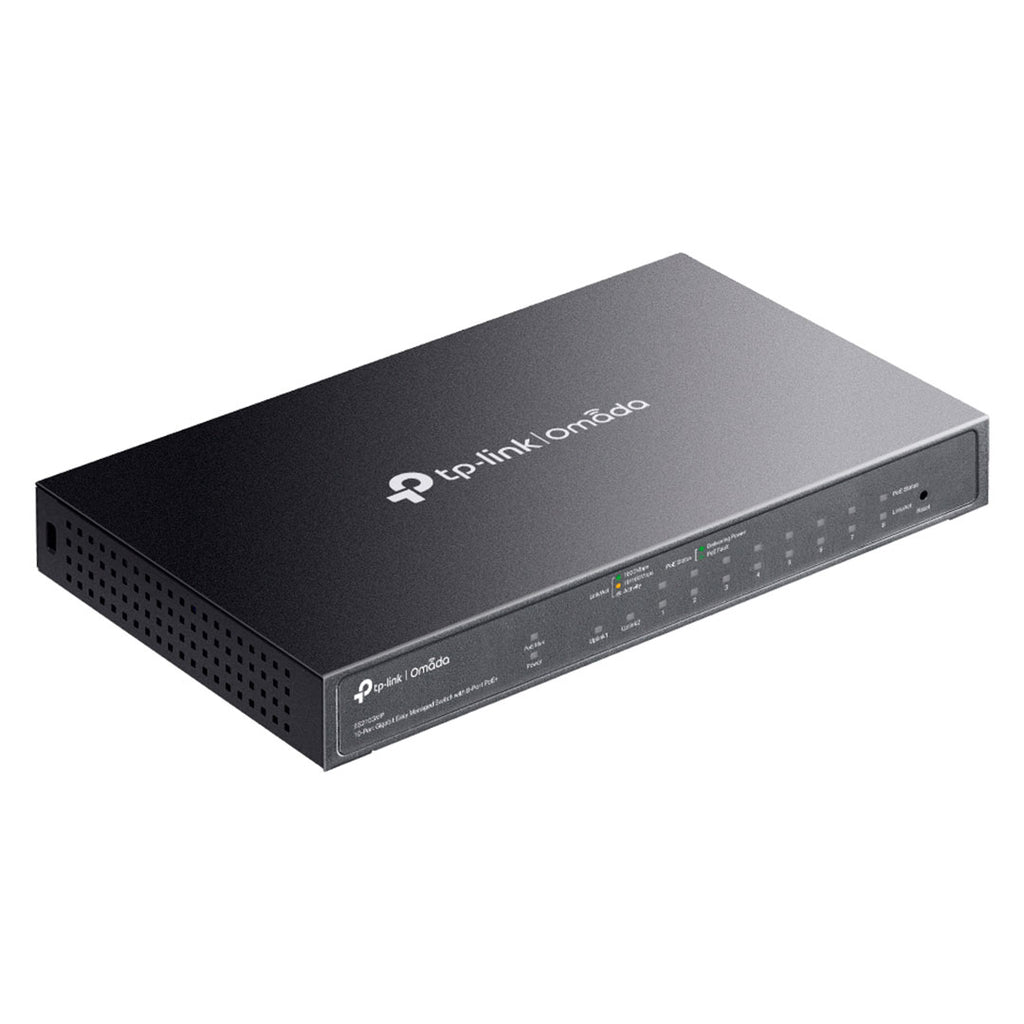

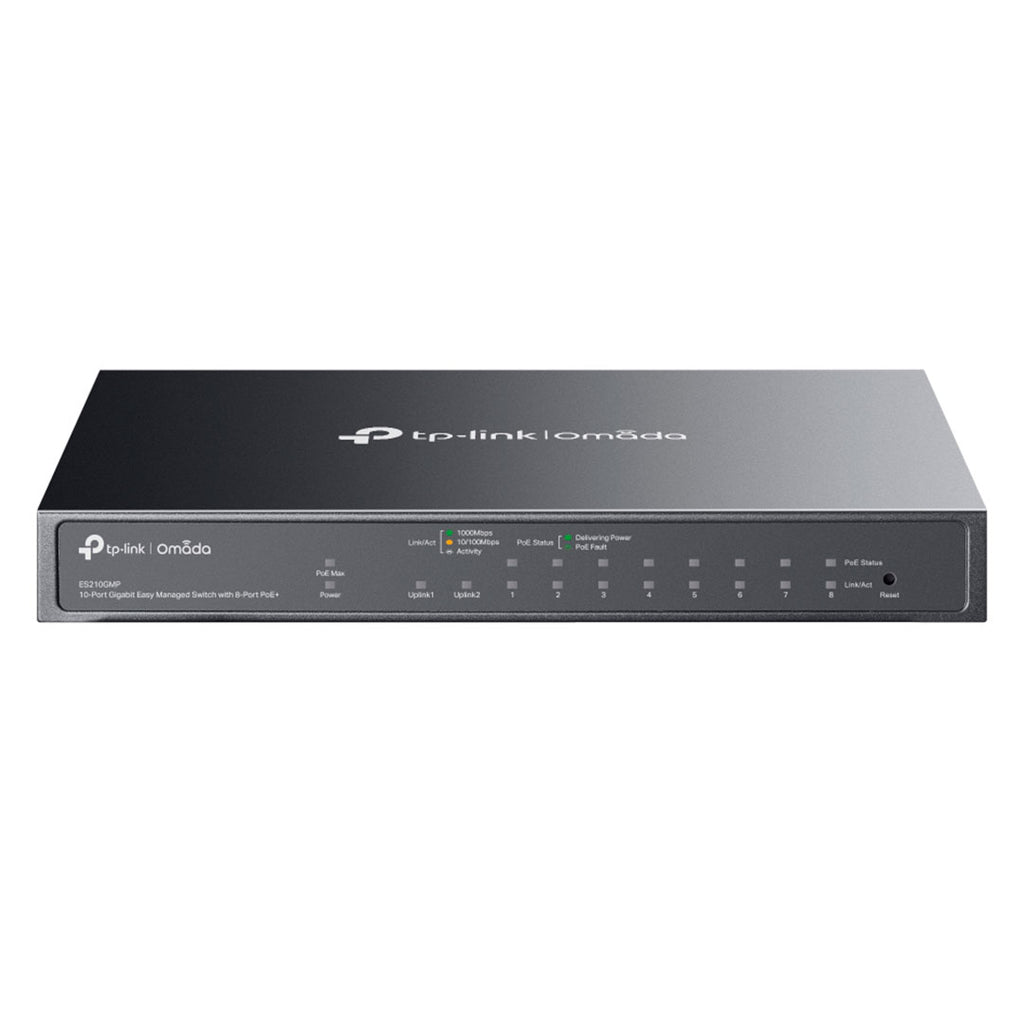

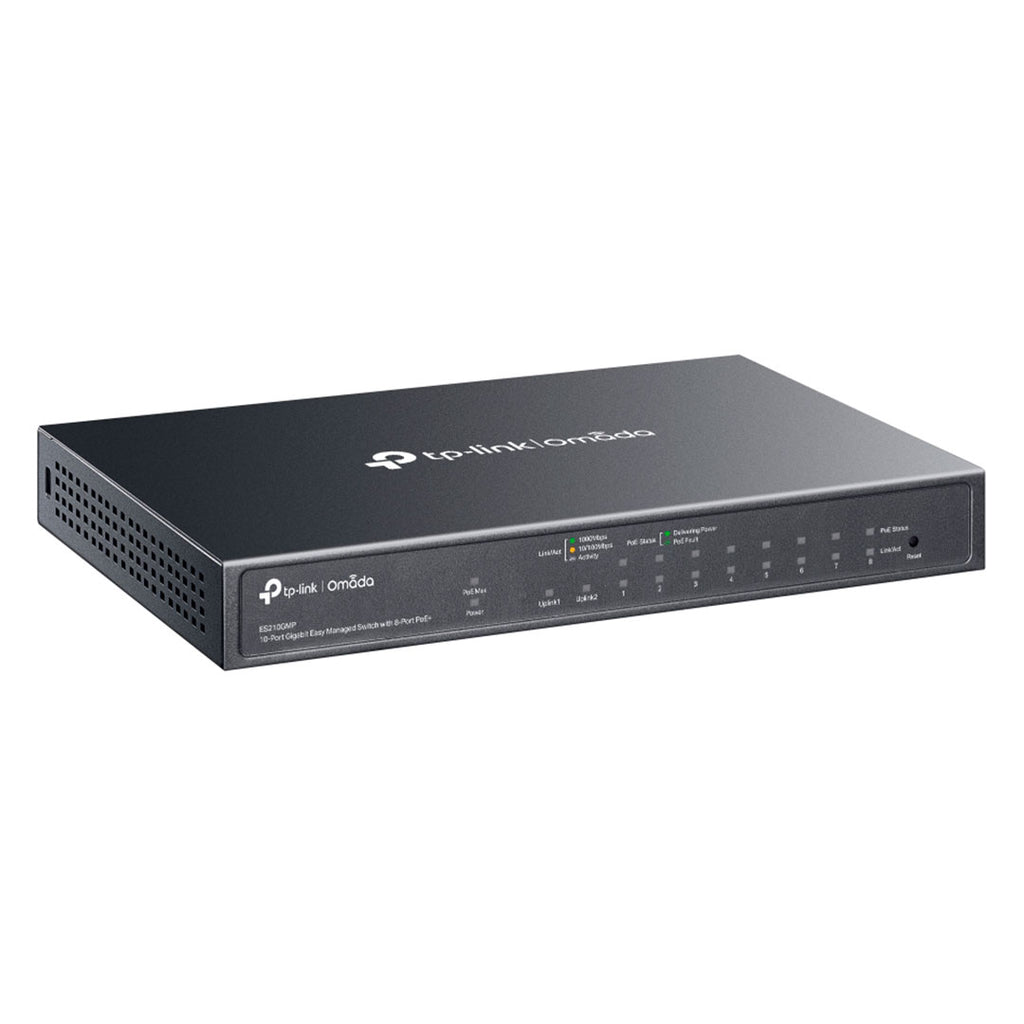

Switch Omada Easy Managed 10 Puertos Gigabit 8 Puertos PoE+
- 8 puertos RJ45 Gigabit PoE+ compatibles con 802.3af/at
- 1 puerto Gigabit RJ45, 1 puerto combo Gigabit SFP/RJ45
- 123 W Potencia PoE, con hasta 30 W para cada puerto PoE*
- Fácil de usar: admite plug-and-play para conectividad instantánea y configuración sencilla para funciones adicionales
- Gestión centralizada de la nube a través de la web o la aplicación Omada †
- Hasta 250 m PoE**, QoS △ , PoE Auto Recovery ‡ y Port Isolation para redes de vigilancia seguras
- Prevención automática de bucles, VLAN e IGMP Snooping
- Diseño sin ventilador para un funcionamiento silencioso.
- Carcasa de metal duradera y diseño de montaje en pared o escritorio.
| CARACTERÍSTICAS DE HARDWARE | |
|---|---|

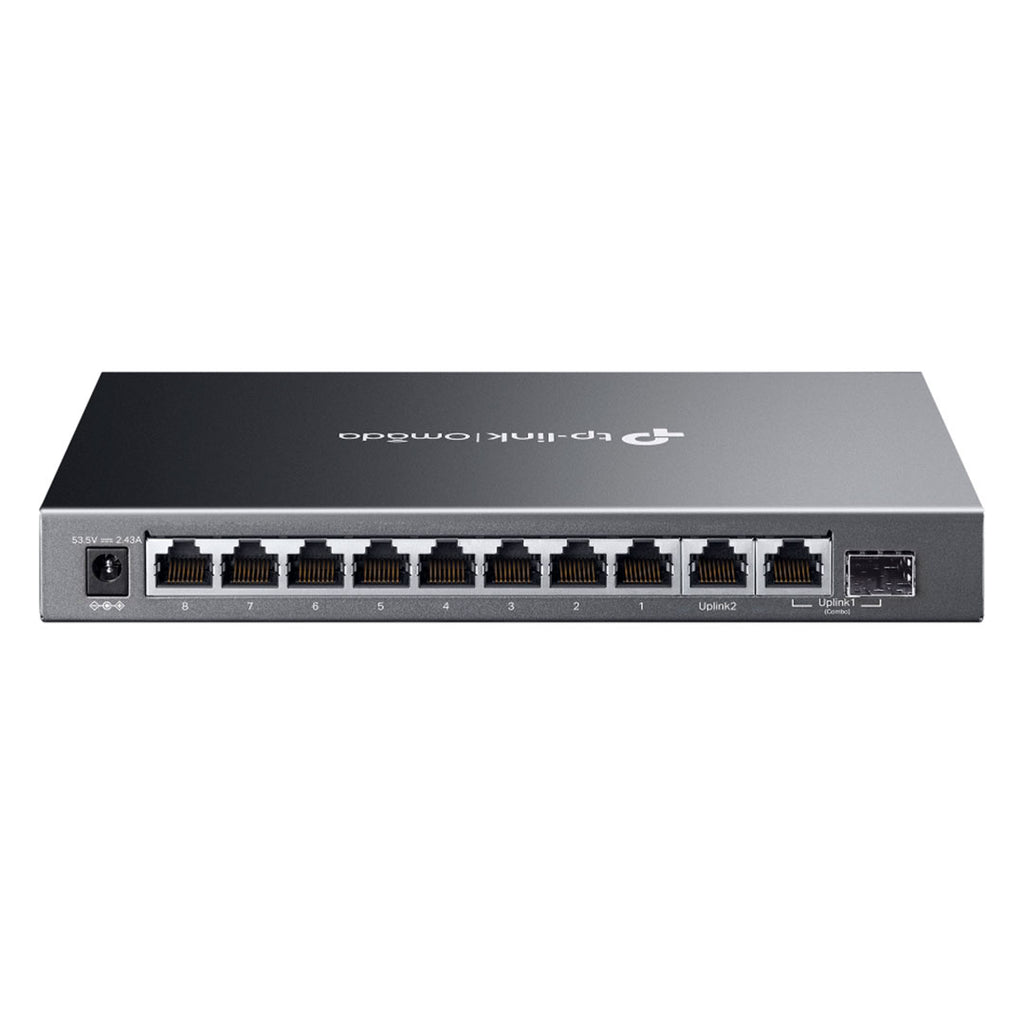

| Interfaz | • 8× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+) • 1× 10/100/1000 Mbps RJ45 Port • 1× Gigabit SFP/RJ45 Combo Port • Auto-Negotiation/Auto MDI/MDIX |
| Cantidad de Ventiladores | Fanless |
| Instalación | • Desktop • Wall Mount |
| Bloqueo de Seguridad Físico | √ |
| Fuente de Alimentación | DC Power Adapter (Output: 53.5V DC / 2.43A) |
| Puertos PoE (RJ45) | • Standard: 802.3af PoE and 802.3at PoE+ compliant • PoE Ports: 8 ports • PoE Budget: 123W available for all PoE+ ports, 30W max per port • PoE Auto Recovery‡ • Up to 250m PoE transmission distance** |
| Dimensiones | 8.2×4.9×1.0 in (209×126×26 mm) |
| Surge Protection | ±6kV |
| RENDIMIENTO | |
|---|---|
| Capacidad de Conmutación | 20 Gbps |
| Tasa de Reenvío de Paquetes | 14.88 Mpps |
| Tabla de Direcciones MAC | 8K |
| Memoria del Buffer de Paquete | 4 Mbit |
| Jumbo Frame | 15 KB |
| CARACTERÍSTICAS DE SOFTWARE | |
|---|---|
| Calidad de Servicio | • Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control△ |
| Características L2 | • Static Link Aggregation • Loop Prevention / Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP |
| Multicast L2 | • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave |
| VLAN | • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID |
| Método de Transmisión | Store-And-Forward |
| GESTIÓN | |
|---|---|
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Gestión Centralizada | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Acceso a la nube | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Aprovisionamiento sin contacto | Yes. Requires the use of Omada Cloud-Based Controller |
| Funciones de gestión | • Web-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Unified Configuration† |
| Otros | |
|---|---|
| Certificaciones | FCC, CE, RoHS |
| Contenido del Paquete | • ES210GMP • Power Adapter • Installation Guide • Rubber Feet |
| Factores Ambientales | • Operating Temperature: 0℃~40℃ (32℉~104℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
