Descripción

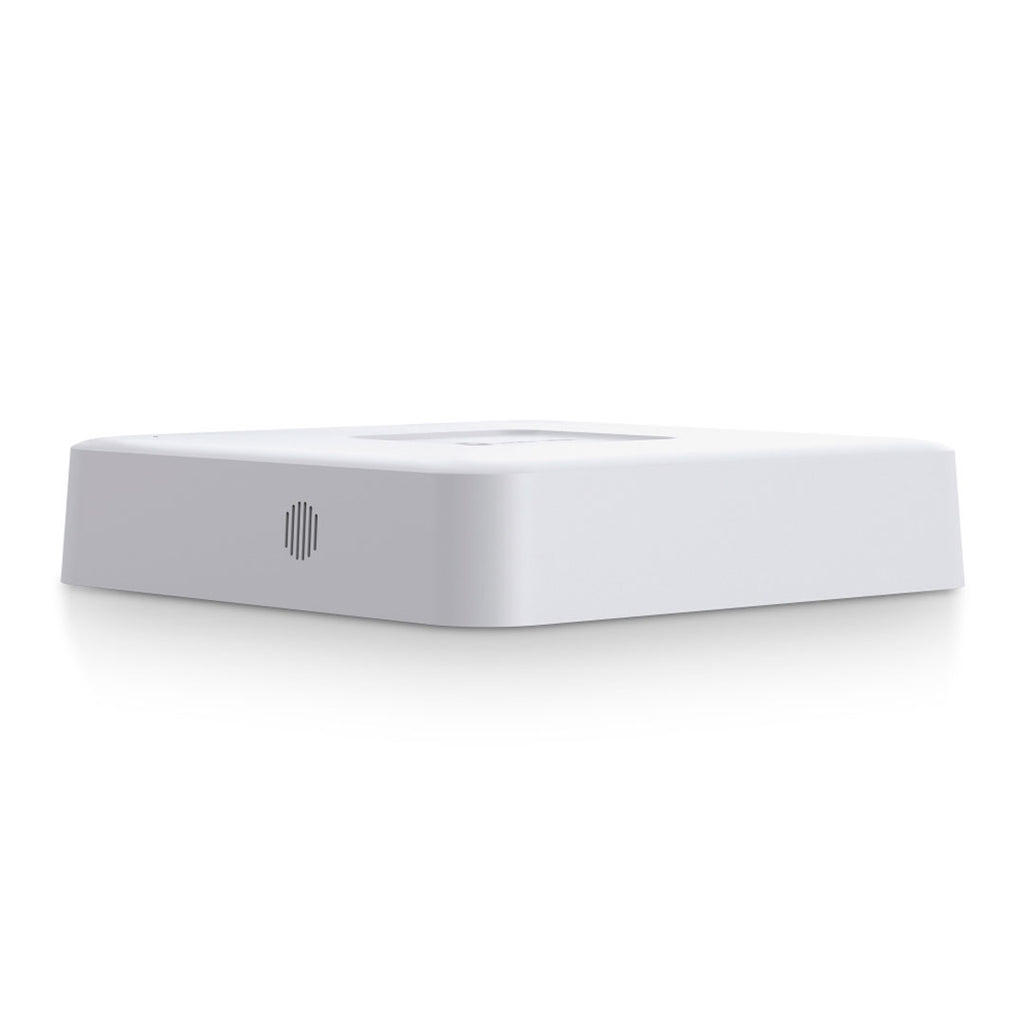

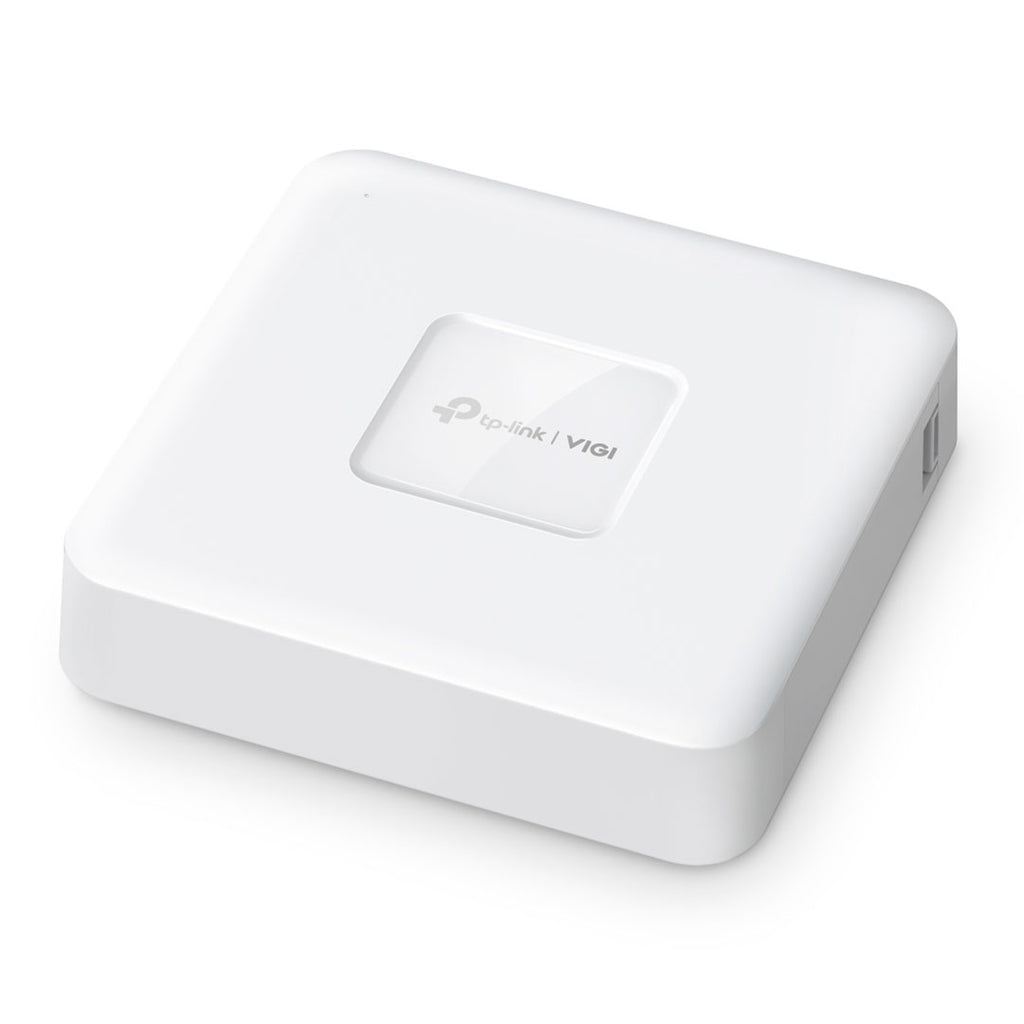

VIGI NVR1104H-4P
VIGI 4 Channel PoE+ Network Video Recorder
- 4-Channel Live View and 4K HDMI Video Output
- 4× 10/100 Mbps PoE+ Ports with 53 W PoE Budget△
- Up to 2-ch @ 8MP (25fps) / 4-ch @ 4MP (25fps) Decoding Capability
- 4-Channel Synchronous Playback†
- 80 Mbps Incoming Bandwidth and 60 Mbps Outgoing Bandwidth
- 1 interfaz SATA (hasta 10 TB) *
- Tecnología de compresión H.265+
- HDMI and VGA Simultaneous Output
- Remote Monitoring
| Video y Audio | |
|---|---|
| Entrada de vídeo IP | 4-Channel |
| Ancho de banda entrante | 80 Mbps |
| Ancho de banda saliente | 60 Mbps |
| Resolución de salida HDMI | 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| Resolución de salida VGA | 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| Modo de salida de video | HDMI/VGA Simultaneous Output |
| Pantalla multivista | 1/4 |
| DECODIFICACIÓN | |
|---|---|
| Compresión de Audio | G.711A/G.711U/G.726 |
| Formato de decodificación | H.265+/H.265/ H.264+/H.264 |
| Compresión de Video | H.265+/H.265/ H.264+/H.264 |
| Resolución de registro | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Resolución de visualización/reproducción en vivo | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/ DCIF/2CIF/CIF/QCIF |
| Reproducción síncrona | 4 Channel |
| Capacidad | • 25fps: 2-ch @ 8MP, 4-ch @ 4MP • 30fps: 4-ch @ 4MP, 3-ch @ 5MP |
| Administración de Grabación | |
|---|---|
| Modo de grabación | • Manual Recording • Scheduling Recording • Motion Detection Recording |
| Modo Playback | • Instant Playback • Regular Playback • Tag Playback • Event Playback |
| Modo de Respaldo | • Regular Backup • Video Clip Backup |
| Función Playback | • Play • Pause • Stop • Fast Forward • Fast Backward • Play By Frame • Full Screen • Video Clip • Export Clip • Digital Zoom • Lock Recording • Audio On/Off |
| NETWORK | |
|---|---|
| Protocolo | TCP/IP, DHCP, DNS, NTP, UPnP |
| Mobile Phone Access | Android, iOS |
| Incoming Bandwith | 80 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
| Interoperability | ONVIF Profile S, CGI |

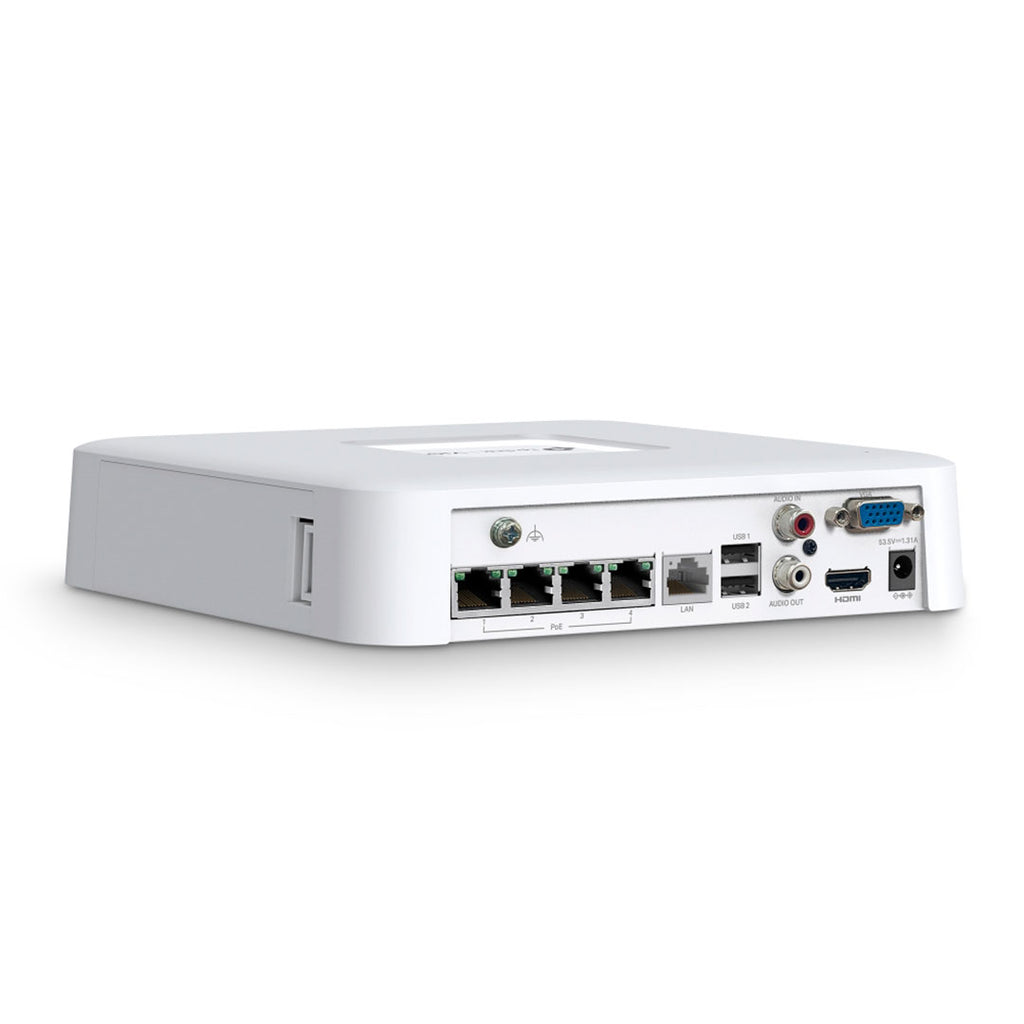

| External Interface | |
|---|---|
| Network Interface | 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 2× USB 2.0 |
| Audio Interface | 1-ch RCA Input; 1-ch RCA Output |
| Alarm In/Out | N/A |
| Serial Interface | N/A |
| Power | 1× DC Jack |
| Reset Button | 1 |
| Speaker | 1; Real-time Audio Output without Needing Peripherals. |
| eSATA | N/A |
| HDMI | 1 |
| VGA | 1 |
| HARD DISK | |
|---|---|
| SATA | 1 SATA Interface; Enables Easy Manual HDD Installation and Removal with Convenient Side Access. |
| Capacity | Up to 10 TB Capacity for Each HDD* |
| PoE | |
|---|---|
| Standard | 802.3at/af Compliant |
| Interface | 1- 4, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| PoE Budget | 53 W Available for All PoE+ Ports, 30 W Max per Port |
| Alarm | |
|---|---|
| General Alarm | • Motion Detection • Video Tampering • Scene Change Detection • Line-Crossing Detection • Intrusion Detection • Region Entering Detection • Region Exiting Detection • Loitering Detection • Object Abandoned/Removal Detection • Vehicle Detection • Human Detection • Abnormal Sound Detection • Smart Frame Note: The alarm function requires the use of a camera. |
| Anomaly Alarm | • Video Loss • Offline and IP Conflict • Disk Exception • Login Exception Note: The alarm function requires the use of a camera. |
| Alarm Linkage | • Recording • White Light Alarm • Buzzer • Log • Audible Alarm Note: The alarm function requires the use of a camera. |
| INTERFACES | |
|---|---|
| Network Interface | 1 interfaz Ethernet autoadaptable RJ-45 10/100 Mbps |
| USB Interface | 2× USB 2.0 |
| GENERAL | |
|---|---|
| Temperatura de Funcionamiento | -10–55 °C |
| Storage Temperature | -40–70 °C |
| Storage Humidity | 10%~90% RH Non-Condensing |
| Contenidos del Paquete | VIGI Network Video Recorder Power Adapter HDD Screws Mouse Quick Installation Guide |
| Working Temperature | • NVR: -10–55 °C • Power Adapter: 0–40 °C |
| Working Humidity | 10%~90% RH Non-Condensing |
| Dimensiones (W X D X H) | 200.3 × 200.3 × 43 mm |
| PoE | Estándar: 802.3af/at Puertos PoE: Puertos 1-4 PoE Presupuesto: 53 W |
| External Power Supply | 53.5V DC/1.31A |
| Power Supply | 53.5V DC/1.31A |
| Power Consumption | • 4.82 W (Without Disk) • 14.23 W (With Disk) |
| Certificaciones | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI |
| VIDEO/IMAGEN | |
|---|---|
| Video Input | Entrada de vídeo IP de 4 canales, resolución de hasta 8 MP |
| Recording Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/ DCIF/2CIF/CIF/QCIF |
| HDMI Output Resolution | 1 Canal, Resolución: 3840x2160/30Hz,1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz, 1280x720/60Hz |
| VGA Output Resolution | 1 Canal, Resolución: 1920x1080/60Hz,1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz, 1280x720/60Hz |
