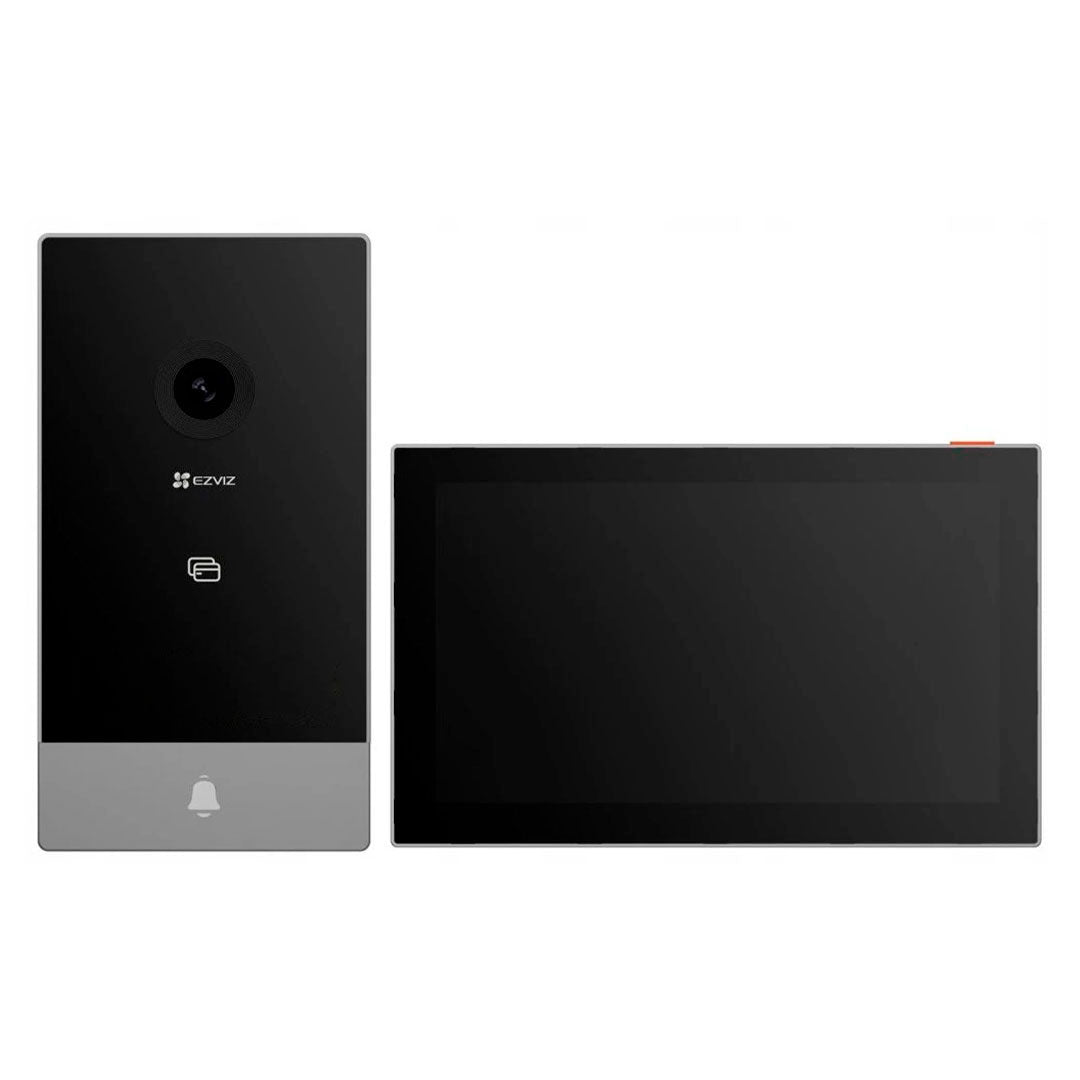

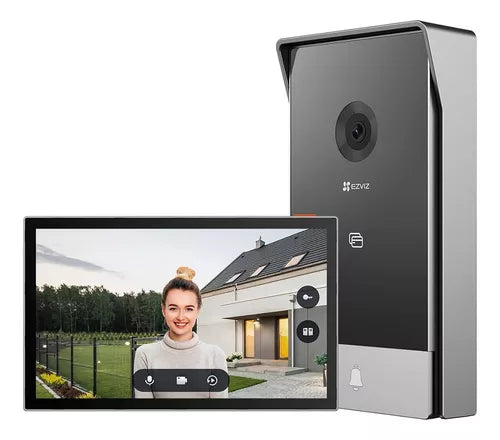

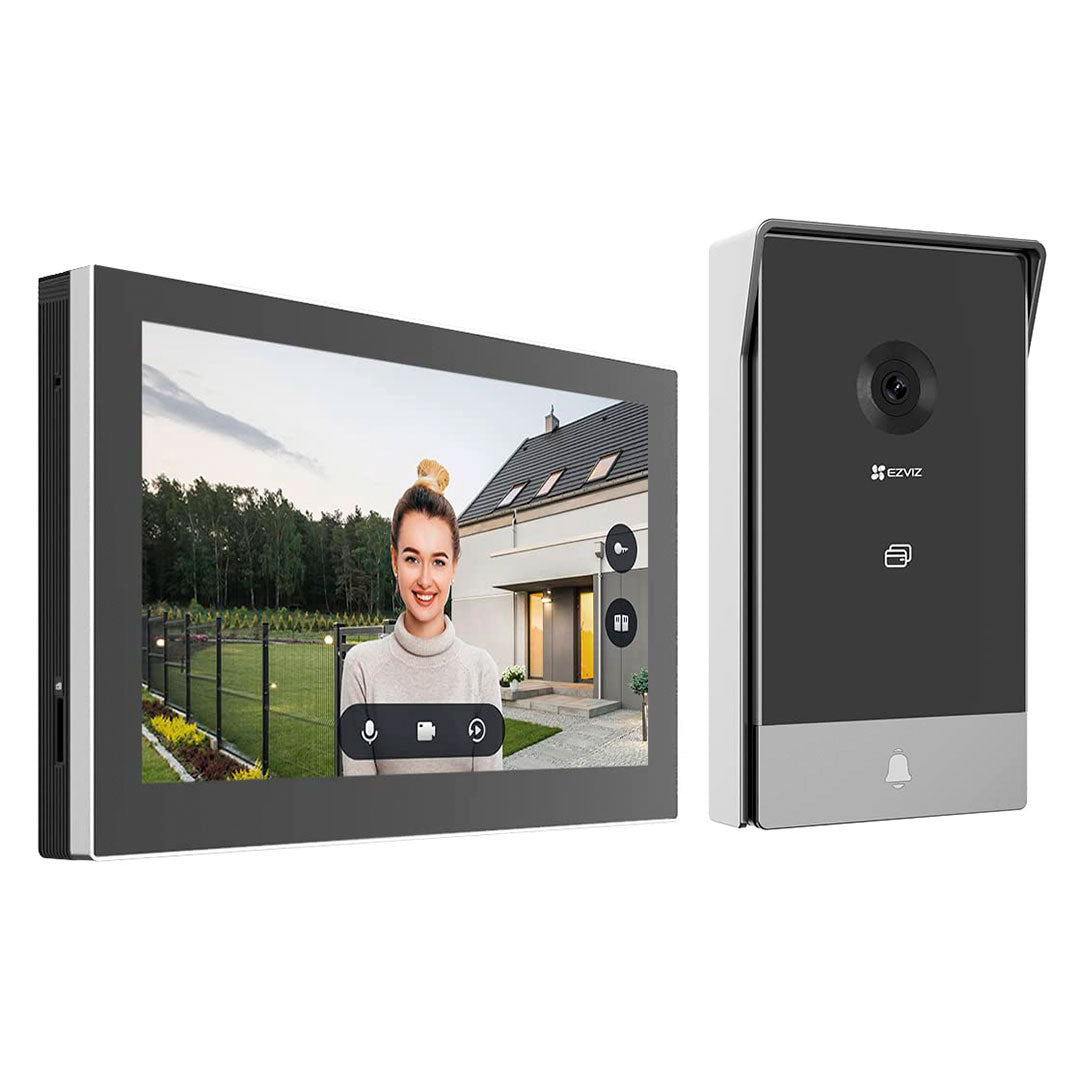

| Outdoor Doorbell |
| Image Sensor |
1/2.7" Progressive Scan CMOS (Supports low light sensitivity) |
| Lens |
2.0 mm @ F2.2,viewing angle: 162° (Diagonal) |
| Day & Night |
IR-cut filter with auto-switching, 850 nm infrared light × 2 (max. 6m) |
| Max. Resolution |
2048 × 1296 |
| DNR |
2D / 3D DNR |
| Video Compression |
H.265 / H.264 |
| Frame Rate |
Max: 15fps; Self-Adaptive during network transmission |
| Connection and Function |
| Connection Method |
Wired connection (2-Wired, capable with 4-Wired), digital signal transmission |
| Transmission Distance |
Φ 2 x 0.75mm² , max. 50m Φ 2 x 1.5mm² , max. 100m Twisted pair, max. 120m |
| Open the door (Gate) |
Support 2 wiring ports. 1-10m distance. The intercom panel provides a “dry”-contact connection, without an electric current, to connect to the button for automated gate, gate breaking capacity: 12V / 2A |
| Unlock (Electric strike plate) |
Support 2 wiring ports. 1-10m distance. The electric strike plate or lock that you order must have a mechanical memory; the power supply to the electric strike plate or lock must not exceed 12V / 1.1A, otherwise should do as user manual. |
| Door Open Methods |
1.RFID badge unlock (Badges × 2 pcs) 2.App remote unlock 3.Indoor display unlock |
| Outdoor Doorbell Interface |
| Audio Input |
Built-in high-sensitivity microphone |
| Audio Output |
Built-in high-power speaker |
| Doorbell Button |
Yes. The light can be set on or off. |
| Name Card |
Three handwritten name cards in total (one already on the intercom panel). The light can be set on or off. |
| Terminal |
Two wiring ports to connect screen. Two wiring ports to connect gate. Two wiring ports to connect electric strike plate. |
| Functions |
| Intelligent Alarm |
Smart human motion detection, Lingering Detection |
| Tamper Alarm |
Supports |
| Video Intercom |
Long-distance video two-way talk |
| General |
| Operation Conditions |
-30°C to 60°C , Humidity 95% or less (non-condensing) |
| IP Grade |
Waterproof, with shield cover |
| Size |
161 × 87 × 20 mm (6.34 × 3.42 × 0.79 inch) |
| Interior Display |
| Display size |
7” touch screen |
| Resolution |
1024 × 600 |
| Interface |
| Audio Input |
Built-in high-sensitivity microphone |
| Audio Output |
Built-in high-power speaker |
| Button |
Screen On / Off Button |
| Terminal |
Two wiring ports to connect 1st outdoor doorbell. Two wiring ports to connect 2nd outdoor doorbell. Two wiring ports to connect extra interior screen (not included in the kit) |
| Storage |
Supports microSD card up to 512 GB Supports EZVIZ Cloud storage |
| Network Parameters |
| Protocol |
EZVIZ Cloud Proprietary Protocol |
| Interface Protocol |
EZVIZ Coud Proprietary Protocol |
| Protocol |
EZVIZ Connect Protocol |
| Wi-Fi Parameters |
| Wi-Fi Standard |
IEEE802.11b, 802.11g, 802.11n, 802.11ac |
| Frequency Range |
2.4G: 2.4 GHz ~ 2.4835 GHz 5G: 5.15 GHz ~ 5.25 GHz |
| Channel Bandwidth |
Supports 20MHz |
| Security |
64 / 128-bit WEP,WPA / WPA2, WPA-PSK / WPA2-PSK |
| Transmission Rate |
11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps, 11ac: 433.3Mbps |
| Function |
| Multiple ringtones |
Up to 20 ringtones |
| Functions |
Live view, playback, two-way talk, video call |
| General |
| Operation Conditions |
-10°C to 45°C, humidity 95% or less (non-condensing) |
| Weight |
Net weight: 653 g (30.16 oz) With package: 1668 g (58.84 oz) |
| Size |
180 × 111 × 15 mm (7.09 × 4.37 × 0.59 inch) |
| Power Supply |
DC 24V / 1A power supply, adaptor (100- 240Vac) |
| Power Consumption |
8W, Max. 24W |
