Product Classification
Regional Availability North America
Portfolio Uniprise®

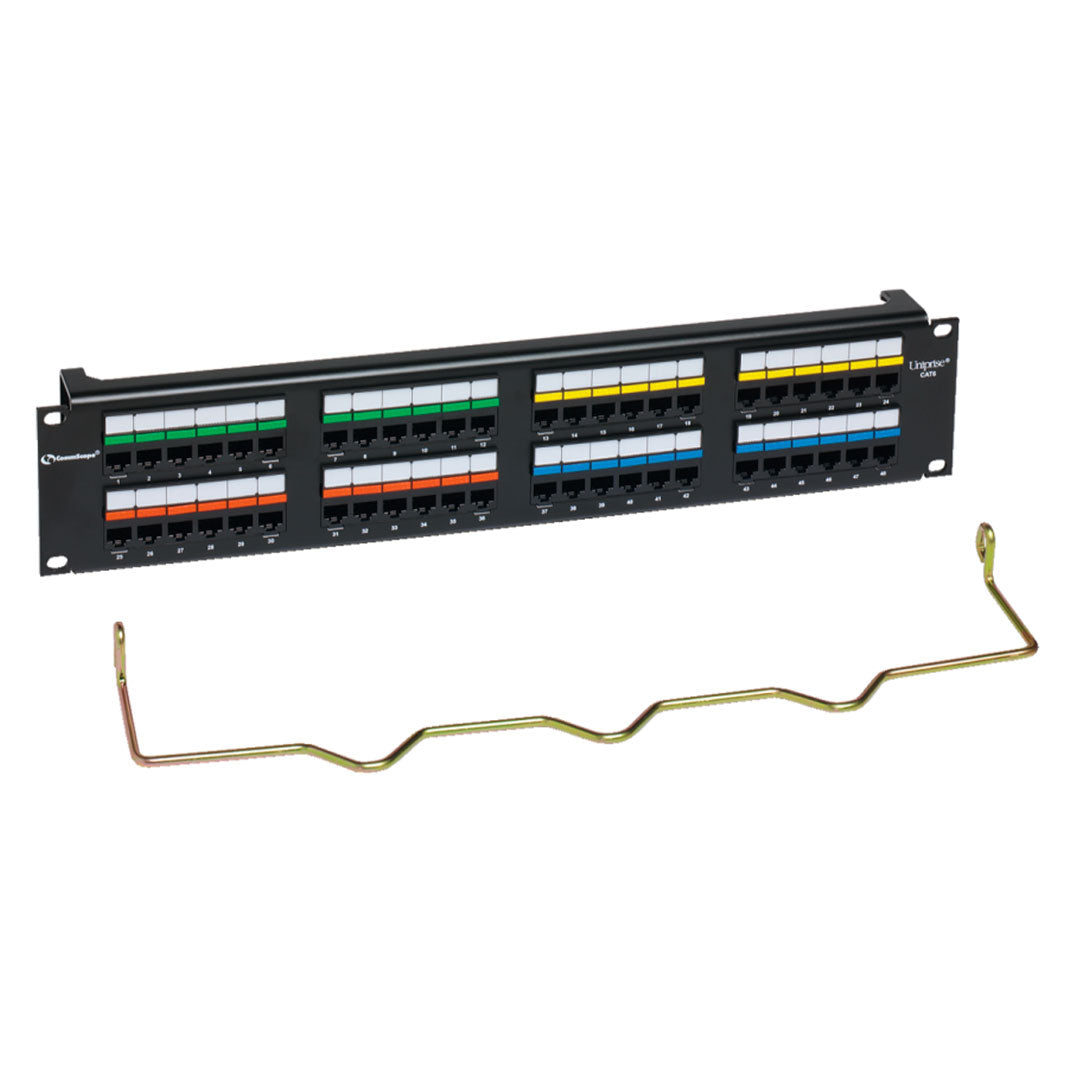

Product Type RJ45 patch panel
General Specifications
ANSI/TIA Category 6
Cable Type Unshielded
Color Black
Conductor Type Solid | Stranded
Intelligence Type Passive
Modules, quantity 8
Rack Type EIA 19 in
Rack Units 2
Termination Type IDC
Total Ports, quantity 48
Wiring T568A | T568B
Dimensions
Height 88.9 mm | 3.5 in
Width 482.6 mm | 19 in
Depth 44.45 mm | 1.75 in
Compatible Diameter Over Dielectric, maximum 1.168 mm | 0.046 in
Compatible Diameter Over Dielectric, minimum 0.762 mm | 0.03 in
Compatible Conductor Gauge, solid 22 AWG | 23 AWG | 24 AWG | 26 AWG
Compatible Conductor Gauge, stranded 22 AWG | 23 AWG | 24 AWG
Electrical Specifications
Current Rating at Temperature 1.5 A @ 20 °C | 1.5 A @ 68 °F
Dielectric Withstand Voltage, RMS, conductive surface 1,500 Vac @ 60 Hz
Dielectric Withstand Voltage, RMS, contact-to-contact 1,000 Vac @ 60 Hz
Insulation Resistance, minimum 500 MOhm
Material Specifications
Contact Plating Material Precious metals
Material Type High-impact, flame retardant, thermoplastic | Powdercoated steel
Termination Contact Plating Nickel
Mechanical Specifications
Plug Insertion Life, minimum 750 times
Plug Insertion Life, test plug IEC 60603-7 compliant plug
Plug Retention Force, minimum 133 N | 29.9 lbf
Environmental Specifications
Operating Temperature -10 °C to +60 °C (+14 °F to +140 °F)
Storage Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Relative Humidity Up to 95%, non-condensing
Flammability Rating UL 94 V-0
Safety Standard UL | cUL
Packaging and Weights
Packaging quantity 1
