Description

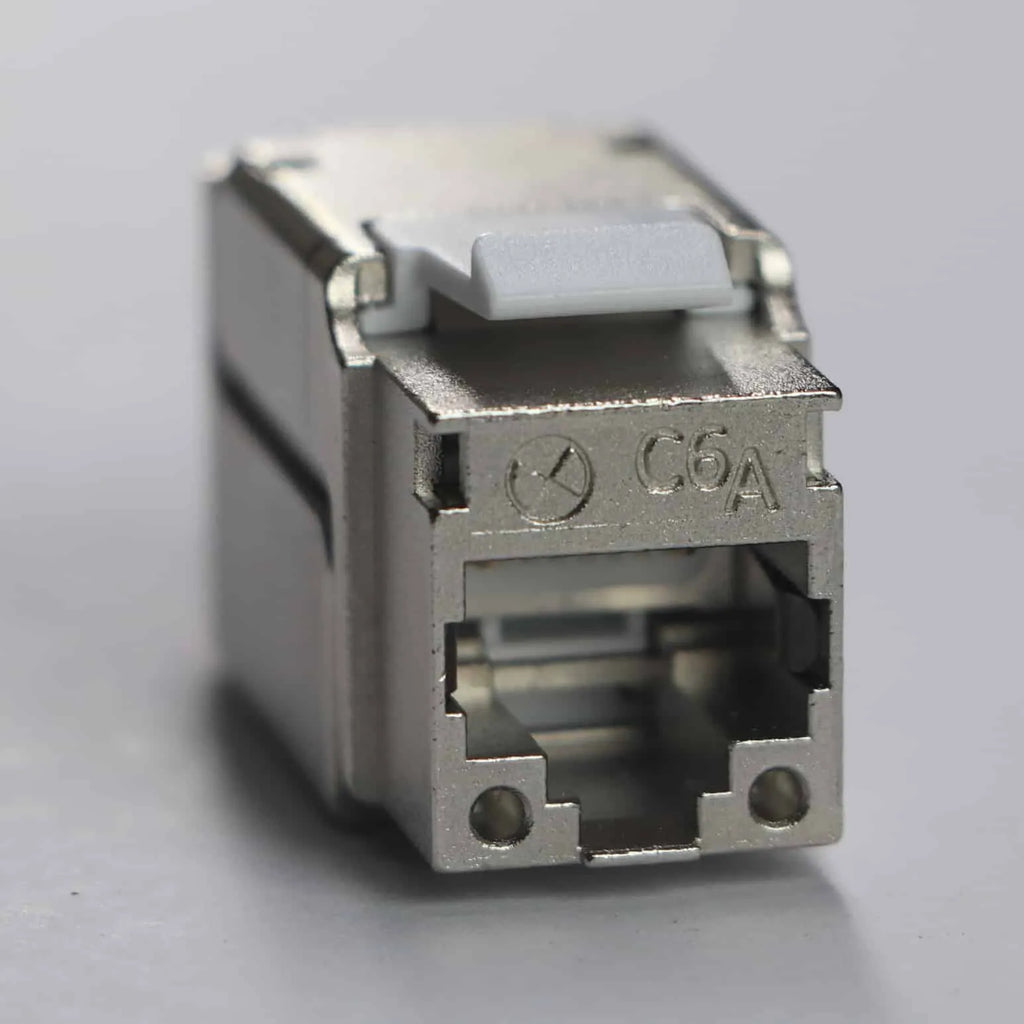

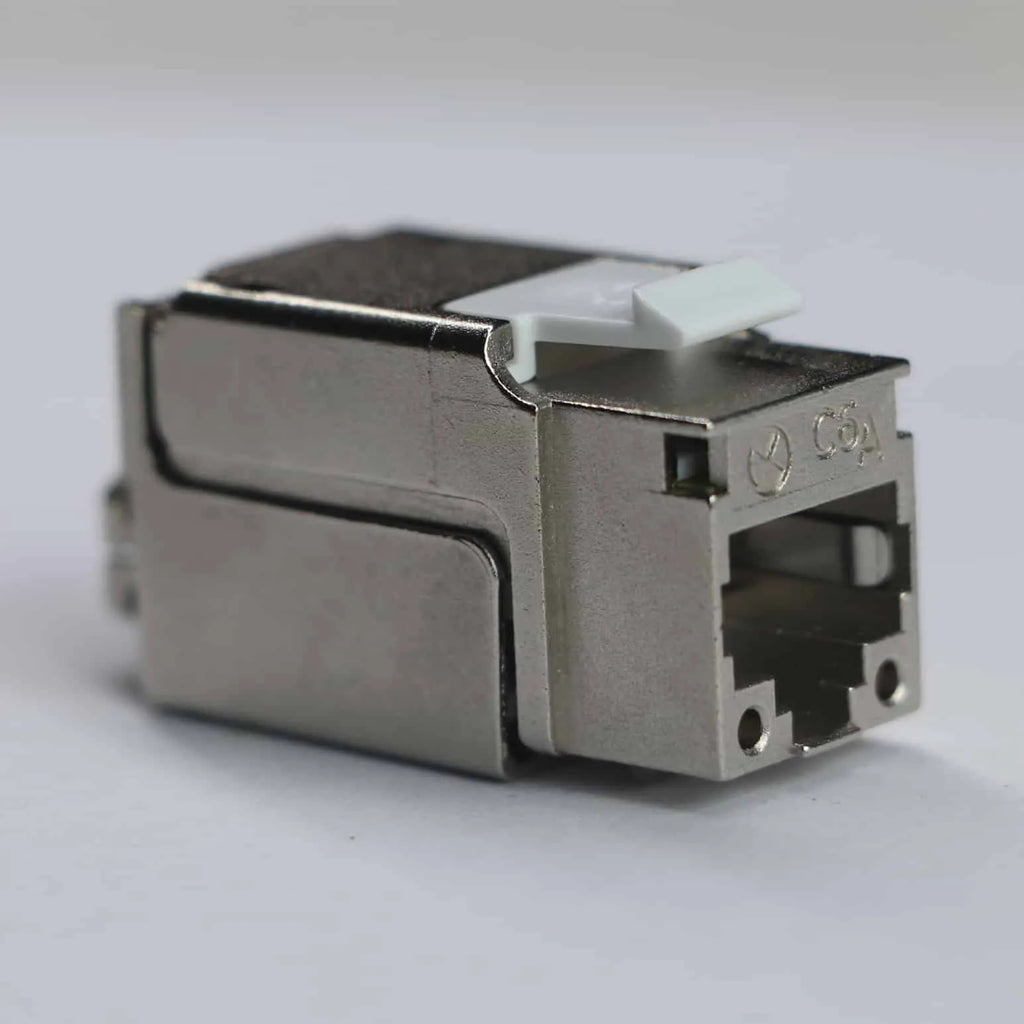

SATRA jacks are in full compliance and even exceed the requirements published in the ANSI/TIA 568-C standards in category 6A, achieving optimal performance for transmissions at 10 Giga bits per second, satisfying high bandwidth requirements.
- Interface used to splice horizontal cable and patch cords.
- For optimal termination of the jacks we recommend using our SATRA E-Tool terminator.
(See Installation Kit). - Color code according to regulations for both T568A/T568B endings.
- The connection of the connectors is by insulation displacement, IDC style 110, can be made in cables from 22 to 24AWG solid conductor or 24AWG multi-wire conductor.
- Designed to meet and exceed the requirements of ANSI/TIA-568-C.2 standard in category 6A.
- Ideal for data, voice or video applications with minimal attenuation.
- ETL Certified
- Wire Gauge: 22 to 24 AWG
- Colors: Metallic (360° armored)
- Termination: IDC 110.
- Application: 10Base T – 100BaseT – 1000BaseT- 10GBaseT
- Conductor Material: 8 pins 50um gold plated + grounding point
- Insertions/Extractions: 750 cycles
