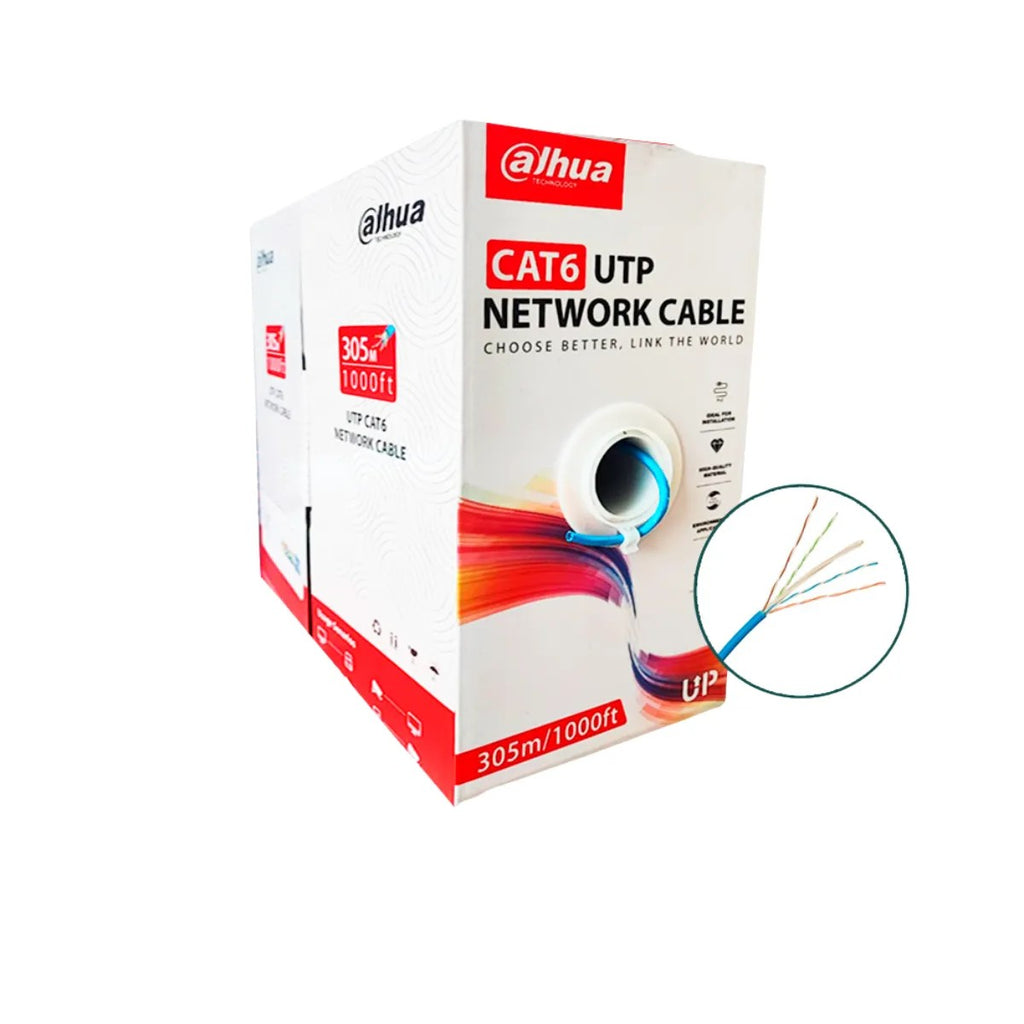

DAHUA DH-PFM920I-6UN-C UTP CAT 6 cable copper 23AWG white jacket x 305mts

driver

Material

Oxygen-free copper (99.97% purity)

Diameter

0.53 mm ± 0.01 mm

Isolation

Material

HDPE

Min. Average Thickness

0.21 millimeters

Diameter

0.95mm ± 0.1mm

Color (4 pairs)

Blue, white/blue; orange, white/orange; green, white/green; brown, white/brown

Separator

Material

PHYSICAL EDUCATION

Specification

Translucent 4.5 × 0.4 mm

Torn cord

Material

Polyester

Specification

500D

Sheath

Material

Polyvinyl Chloride

Min. Average Thickness

0.5 millimeters

Diameter

6.0 mm ± 0.3 mm

Color

White

Electric

Max. DC resistance of single conductor

8.7 Ω/100 m

Min. Insulation resistance

5000MΩ km

Max. DC resistance imbalance

2% (intra pairs), 4% (inter pairs)

Dielectric strength

No fault with 1KV DC for 1 min.

Transmission

Characteristic impedance

100 ± 15Ω

Near-end crosstalk

≥39.30dB/100m@250MHz

Max. Attenuation

34.8dB/100m@250MHz

Return loss

≥17.3dB/100m@250MHz

Mechanic

Tensile strength

Sheath≥13.5 MPa, insulation≥16 MPa

Elongation at break

Cover≥150%, insulation≥300%

Installation curvature radius

>8 times the outer diameter of the cable

Elongation at break of conductor

≥10%

Environmental

Contraction of insulation

≤5%

Resistance to color migration of insulation

Without migration

Tensile strength and elongation at break of sheath after aging

≥12.5MPa, ≥100%

Low temperature bending test

No cracks after testing.

Thermal shock test

No cracks after testing.

Operating temperature

–20°C to +60°C (–4°F to 140°F)

Installation temperature

0°C to +50°C (32°F to 122°F)

Storage temperature and humidity

–10°C to +40°C (14°F to 104°F), <60% (RH)

Security

Vertical fire spread test

Comply with IEC 60332-1-2

packaging

Cable length

305.0 m (1000.66 ft) ± 1.5 m (4.92 ft)

Internal dimensions of the box

416.0 mm × 412.0 mm × 220.0 mm (16.37" × 16.22" × 8.66") (L × W × H)

Packaging method

305.0 m (1000.66 ft) per box, one protective box with 2 boxes inside

Net weight

≥10.5 kg (23.15 lbs)

Gross weight

≥11.5 kg (25.35 lbs)

Compliance

Executive Standards

Q/DXJ 067-2019, EN50575-2014

Certification

Certification

CPR Eca
