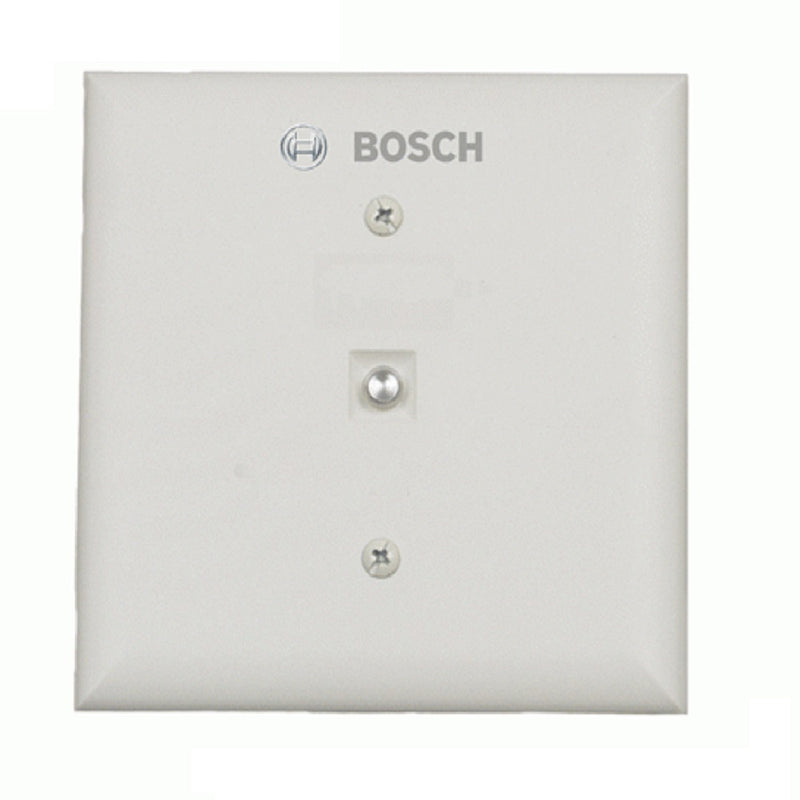

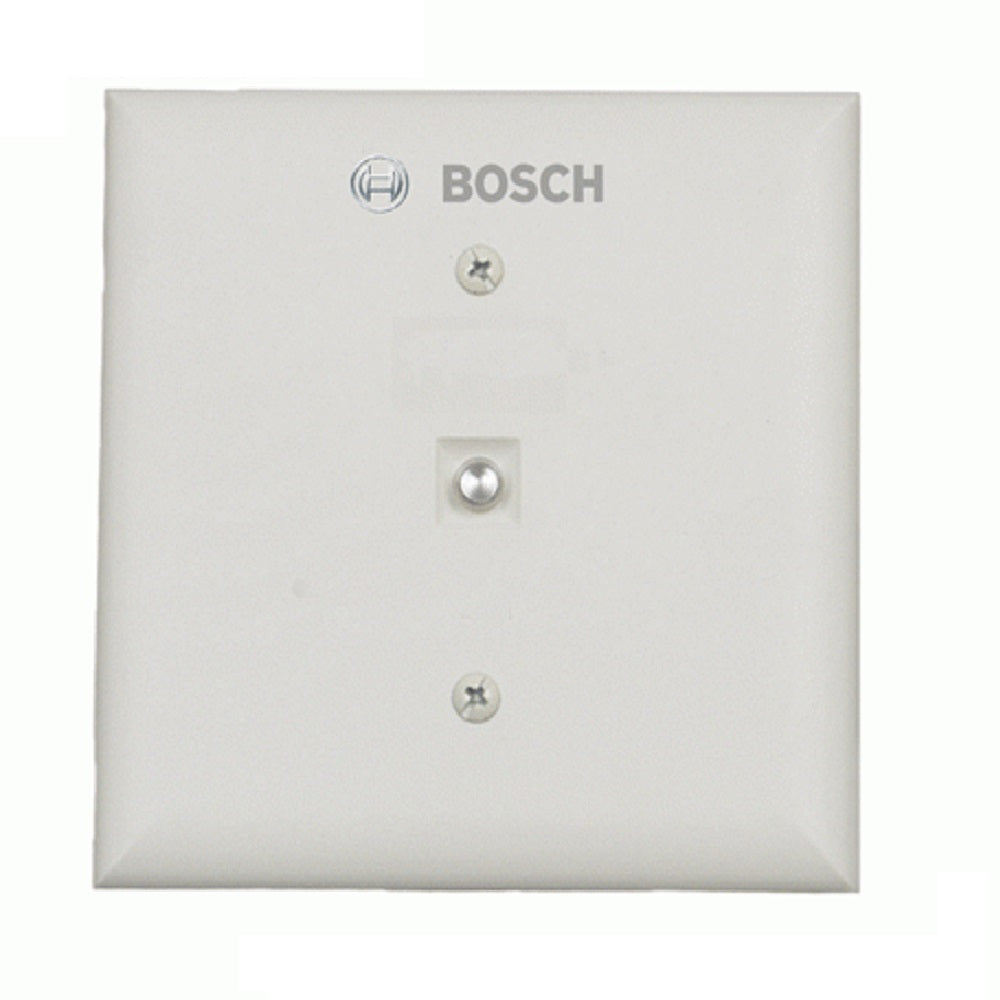

BOSCH FLM-7024-ISO Loop isolator module

The FLM-7024-ISO MUX bus isolator module is placed between devices on the MUX bus. A short circuit on the bus causes the isolators adjacent to either side of the short to activate. This effectively separates all devices between the activated isolators from the rest of the bus. This prevents failure of the entire bus. Once the short circuit is resolved, the isolators automatically restore normal operation of the entire circuit.

Basic Functions

Status LED The yellow LED illuminates steadily when the isolator is activated.

It is visible:

• In ambient light (up to 500 lx).
• At a distance of 3 m.
• At an angle of up to 22.5º against the normal to the surface. Certificates and approvals.

Certification Region

USA

• UL ANSI/UL 864, Control Units and Accessories for Fire Alarm Systems" (10th edition).
• CSFM see our website .

Planning

Compatible products

The following products are compatible with the FLM-7024-ISO module:

Product Description

• Control Panels: FPD-7024 Addressable FACP (v1.03 or higher).
• Required module: FPE-7039 MUX expansion module.

Considerations on mounting

The module is mounted in a 4-inch square electrical box.

Wiring Considerations

The module supports wire sizes between 18 AWG (ISO 0.75 mm2 ) and 12 AWG (ISO 4 mm2 ).

Note: Do not use shielded cables. Twisted pair cable is not recommended, but is acceptable if the cable length is reduced by 50%.

Main features

• Easily installs into a 4-inch square electrical box.
• A steady yellow LED indicates that the isolator is activated.
• It can be wired as Class X, Class A, or Class B.

Specs

Electrical data

• Standby Current Standby Activity: 0.1 mA to 5 mA (minimum) and 8 V maximum (12 V DC nominal).

Environmental conditions

• Environment: Indoor, dry.
• Relative humidity: Up to 95% non-condensing.
• Temperature (operating): 0°C to +38°C (+32°F to +100°F).

Mechanical data

• Color: White.
• Dimensions: 10.9 cm (4.3125 in.) all sides by 2.7 cm (1.0625 in.) deep.
• ABS plastic material.
• Weight: 110 g (3.9 oz).
• Performance Devices: in group 25 Short delay time 250 ms.
